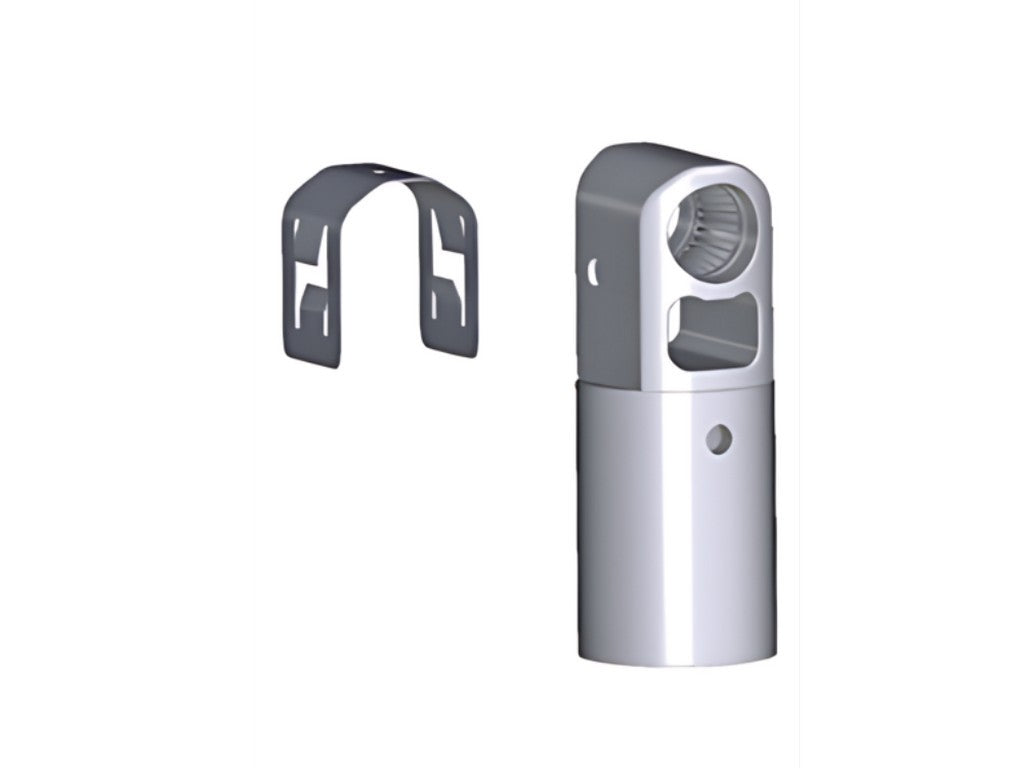

STAUBLI 15.5415 – PerforMore socket crimp connection for 95 mm²
The STAUBLI 15.5415 is a socket crimp connection in the PerforMore series, designed for 95 mm² conductors. It is used as the current-carrying connection part in a high-voltage connector, where both safety, compact design, and stable contact over time are required.
In practice, it is a spare part or component for building PerforMore high-voltage connections. It is made for crimp connection, so the conductor and contact are joined by pressing instead of welding. This makes it relevant when working with fixed, reproducible connections in electrical and vehicle technical installations.
The PerforMore system is developed for electric drivetrains, and this socket is part of solutions with high voltage and high current. It is specified for DC 1000 V and can be used in connections where the continuous current is rated up to 600 A, depending on the ambient temperature. The contact protection is IP2X unmated, and when mated, the degree of protection is IP68 and IP6K9K. Additionally, it has a two-stage HVIL interlocking system, which helps ensure correct disconnection.
For professional users, it is especially important that it fits into a standardized system. Here, conductor cross-sections of 50, 70, and 95 mm² are supported according to LV-216, and the test voltage is AC 4260 V for 1 minute at 50 Hz. The temperature range for crimp connections is -40 °C to +120 °C.
Typical applications
The socket crimp connection is used in PerforMore high-voltage connections where a compact and robust contact solution is needed for electric drivetrains, high-voltage batteries, inverters, and high-voltage distribution units.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 15.5415
- Type: PM-S10AV-CR95
- Product: PerforMore socket crimp connection
- For conductor cross-section: 95 mm²
- Supported conductor cross-sections: 50, 70 and 95 mm²
- Rated voltage: DC 1000 V
- Continuous current: up to 600 A, depending on ambient temperature
- Degree of protection, mated: IP68 and IP6K9K
- Unmated contact protection: IP2X
- HVIL: two-stage interlocking system
- Test voltage: AC 4260 V, 1 min / 50 Hz
- Temperature limits for crimp connections: -40 °C to +120 °C
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
