PCB magasin 801.1, v. gear sam Ydre dim. LxWxH 355x320x563 mm

PCB magazine

Description

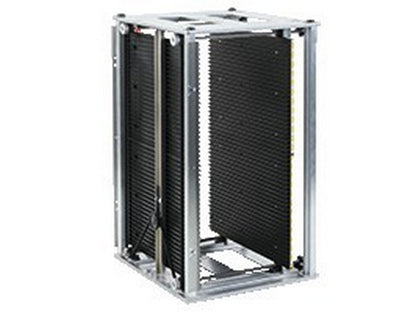

The CAB PCB magazine type 801.1 (manufacturer part number 8919801) is a magazine designed for handling and storing printed circuit boards within the specified dimensions. The magazine comes with polystyrene sides, and the polystyrene variant is ESD-compatible with a surface resistance of < 10^9 Ω (as per DIN EN 61340-5-1). The CAB PCB magazine type 801.1 specifies clear limitations for which PCBs can be placed in the magazine: it supports PCB widths from 40 mm to 250 mm and a maximum PCB length of 342 mm. The external dimensions of the magazine are 355 mm (length) × 320 mm (width) × 563 mm (height), and the weight is specified as 5.6 kg.

Construction and temperature

• Sides: polystyrene (polystyrene variant is ESD-compatible)
• Inserts/slots: temperature rating 60 °C
• Max. ambient temperature: 50 °C

The above information is provided by the manufacturer and describes material properties, dimensional limitations, and temperature limits for inserts/slots and ambient conditions.

Documentation

For complete technical reference and manufacturer information, please see the manufacturer's datasheet:

See datasheet from manufacturer

Specifications

• Manufacturer: CAB
• Manufacturer number: 8919801
• Product name: CAB PCB magazine type 801.1
• External dimensions: 355 mm × 320 mm × 563 mm
• Supported PCB widths: 40 mm – 250 mm
• Maximum PCB length: 342 mm
• Insert/slot temperature rating: 60 °C
• Maximum ambient temperature: 50 °C
• Weight: 5.6 kg
• Material, side walls: polystyrene (ESD-compatible variant)
• ESD: surface resistance < 10^9 Ω (DIN EN 61340-5-1)
