Product Overview

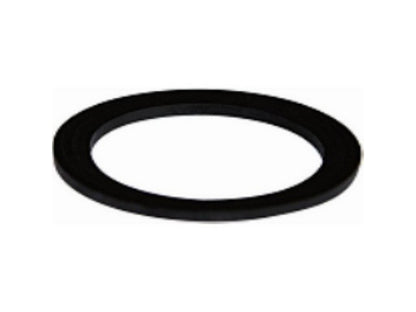

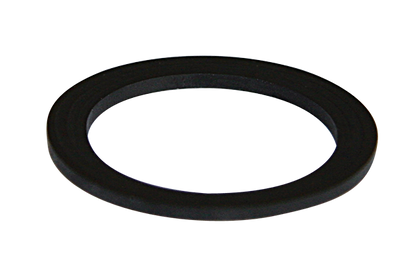

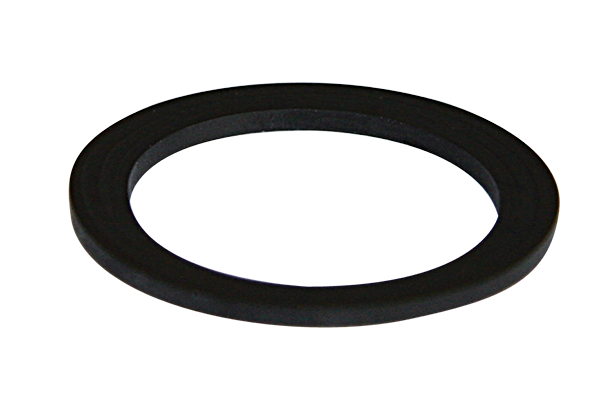

The D9109001 is a flat sealing washer (joint plat) from SIB, manufactured in neoprene. The product is designated by the manufacturer as reference D9109001 and is supplied in packaging of 100 units.
Material and Construction
The sealing washer is made of neoprene. The manufacturer's technical information also indicates a material hardness of 80 Shore A.
Documentation
Technical data and dimensions for this reference are provided in SIB's manufacturer material. For further details, please refer to the manufacturer's datasheet below.
Specifications
- Manufacturer: SIB
- Product Reference: D9109001
- Type: Flat sealing washer (joint plat)
- Material: Neoprene
- Outer Diameter (ØE): 15 mm
- Inner Diameter (ØI): 10 mm
- Thickness (Ep.): 1.2 mm
- Thread Designation (indicated): M16; the manufacturer's technical table also indicates PG 09 and G 3/8" as equivalents
- Recommended Operating Temperature: -40°C to +100°C
- Material Hardness: 80 Shore A (indicated in manufacturer's table)
- Packaging Quantity: 100 units
Content generated with AI – subject to errors.
Contact HIN for further product information.
