Product Overview

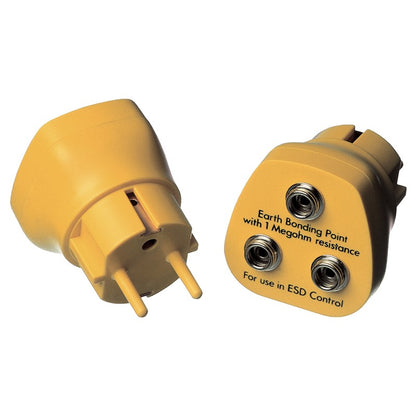

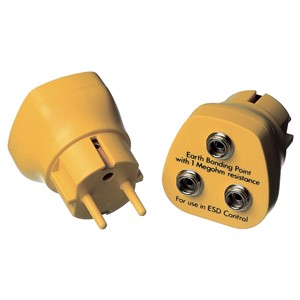

The DESCO 231135 is a European earth bonding plug from DESCO designed for ESD control. The DESCO 231135 solely connects to protective earth in a CEE (7) VII Schuko socket by using molded insulating plastic pins instead of phase and neutral, so only the earth conductor is connected. A nominal 1 megohm resistor is built-in for current limiting in connection with the earth connection.Key Features
- Suitable for European CEE (7) VII Schuko sockets.
- 3 x 10 mm studs on the front of the plug for connecting earth leads.
- Built-in resistor (nominally 1 MΩ) with measured connector-to-earth value specified at 0.8–1.2 MΩ.
- Connector-to-connector resistance approx. 2 MΩ.
- Intended solely for ESD control purposes.
Documentation
Refer to the manufacturer's technical documentation for testing and safety information. See manufacturer's datasheet.Typical Applications
- Used as a common earth bonding point for ESD control where elements in an ESD-protected area must be kept at a common potential.
- Connecting earth leads to wrist straps, bench mats, or floor mats via the studs to achieve protective earthing.
Safety and Testing
The product is manufactured with permanently sealed connections. The manufacturer states that the plug must not be opened or repaired. Testing is performed by measuring the resistance from each termination to the earth pin; the resistance should be between 0.8 and 1.2 megohms as specified in the manufacturer's documentation.Specifications
- Product: DESCO 231135
- Manufacturer: DESCO
- Type: European earth bonding plug with 3 x 10 mm studs
- Suitable for: European CEE (7) VII Schuko sockets
- Built-in resistance: Nominally 1 megohm (connector-to-earth specified 0.8–1.2 MΩ)
- Connector-to-connector resistance: approximately 2 MΩ
- Colour: Yellow
- Dimensions: 63 mm x 49 mm x 49 mm
- Weight: 36 g
- Country of Origin: United Kingdom
