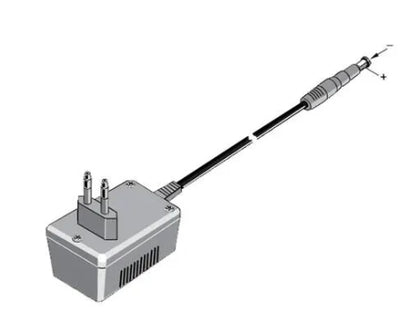

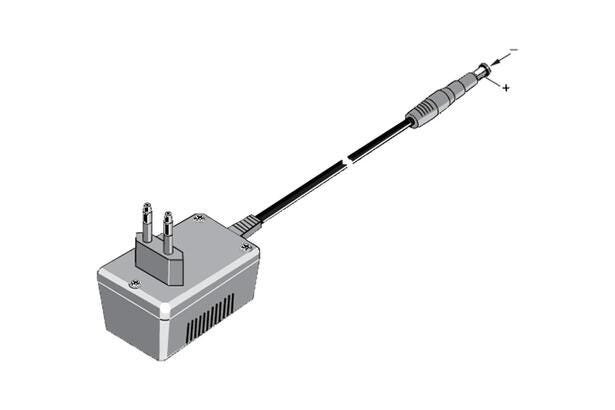

Fluke PM8907/830 – line voltage adapter / battery charger

This Fluke line voltage adapter/battery charger, Model PM8907/830 (Part#: 4328690), provides mains power operation and charges the internal battery in selected Fluke instruments. The unit provides 15 V DC output with a maximum output current of 300 mA and uses a 5 mm power jack according to DIN 45323; the manufacturer's guide states that the outer contact is positive.

Function and compatibility

The PM8907/830 functions as both a mains adapter and a battery charger. It is specified for use with the ScopeMeter 90 and 120 series, as well as the Fluke 43 and 43B Power Quality Analyzers, where it can provide both operating voltage via the mains cable and recharge the internal battery.

Technical details

• Output voltage: 15 V DC.
• Max. output current: 300 mA.
• Output connector: 5 mm power jack, DIN 45323 (outer contact positive).
• Function: Mains adapter and charger for internal battery.
• Compatible instruments: ScopeMeter 90 series, ScopeMeter 120 series, Fluke 43, Fluke 43B.
• Mains plug versions: European 230 V, North American 120 V, UK 240 V, Japan 100 V, Australia 240 V and a universal 115/230 V switchable version.

Typical applications

Used for mains power operation and battery charging of the mentioned Fluke instruments (ScopeMeter 90/120 and Fluke 43/43B). This is the function for which model PM8907/830 is specified.

Sources

Fluke product page

Specifications

• Model: PM8907/830 (Part#: 4328690).
• Manufacturer: FLUKE.
• Output: 15 V DC, max. 300 mA.
• Output connector: 5 mm power jack (DIN 45323), outer contact positive.
• Compatibility: ScopeMeter 90 series, ScopeMeter 120 series, Fluke 43, Fluke 43B.
• Available mains versions: EU 230 V, NA 120 V, UK 240 V, JP 100 V, AU 240 V, universal 115/230 V switchable.
