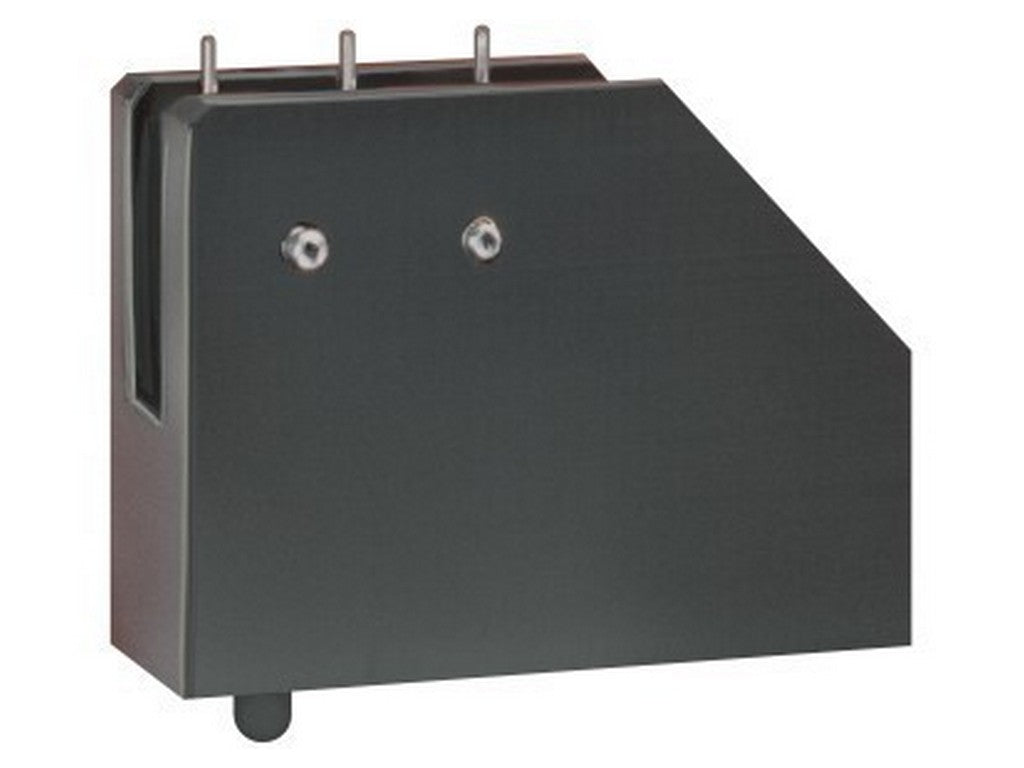

STAUBLI MS-S10BV microswitch
The MS-S10BV is a microswitch used with ID/S10BV and IS10BV connectors. It acts as a small control switch, activating just before the lock fully clicks into place. This makes it suitable when a clear electrical feedback is desired to confirm that the connection has actually been established.
It is a changeover switch with three flat terminals measuring 2.8 mm x 0.5 mm. In practice, this means it can be integrated into a monitoring or signal circuit to register the connector status, rather than just observing the mechanical locking point. It is therefore relevant in installations where increased safety is desired or where operation needs to be clearer for the user.
The switch's rated switching capacity is 6 A at AC 250 V. Mounting and functional checks are described in Stäubli's installation instructions MA046 and MA047.
The datasheet also shows that the microswitch is part of the accessories for the 10BV series, where it is used as an additional monitoring point for the connector.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 14.0103
- Type: MS-S10BV microswitch
- For use with: ID/S10BV and IS10BV connectors
- Contact function: Changeover switch
- Terminals: 3 flat terminals, 2.8 mm x 0.5 mm
- Rated switching capacity: 6 A at AC 250 V
- Mounting and function check: MA046 and MA047
