STAUBLI 14.0100

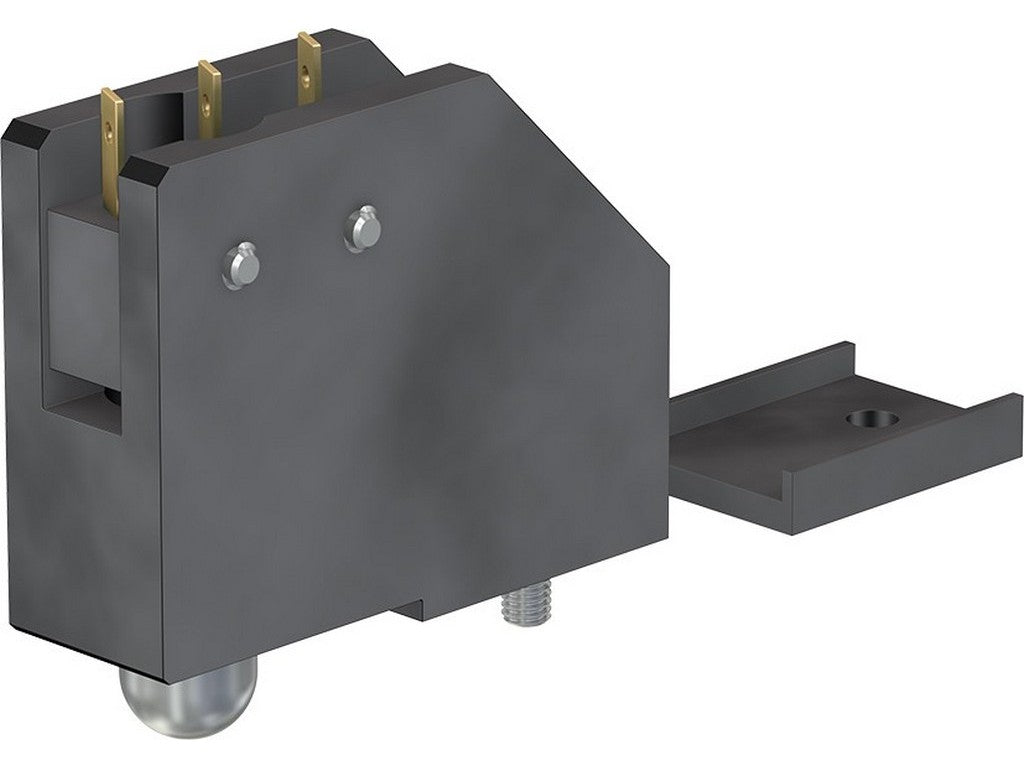

The STAUBLI 14.0100 is a microswitch accessory for the ID/S16BV-NS circular connector. It is used to provide electrical feedback on whether the connector is correctly connected and locked. In practice, it makes it easier to monitor the connector connection in installations using 16BV circular connectors.
The switch is a changeover contact with three flat terminals measuring 2.8 mm × 0.5 mm. It is rated for 6 A at 250 VAC, allowing it to be used in common control and signal circuits where clear status indication is required.
It is important to note that when the microswitch is installed, the connector's IP65 rating is no longer guaranteed. This detail is important in environments where ingress protection plays a role in solution selection.
