STAUBLI 15.0683C1-27

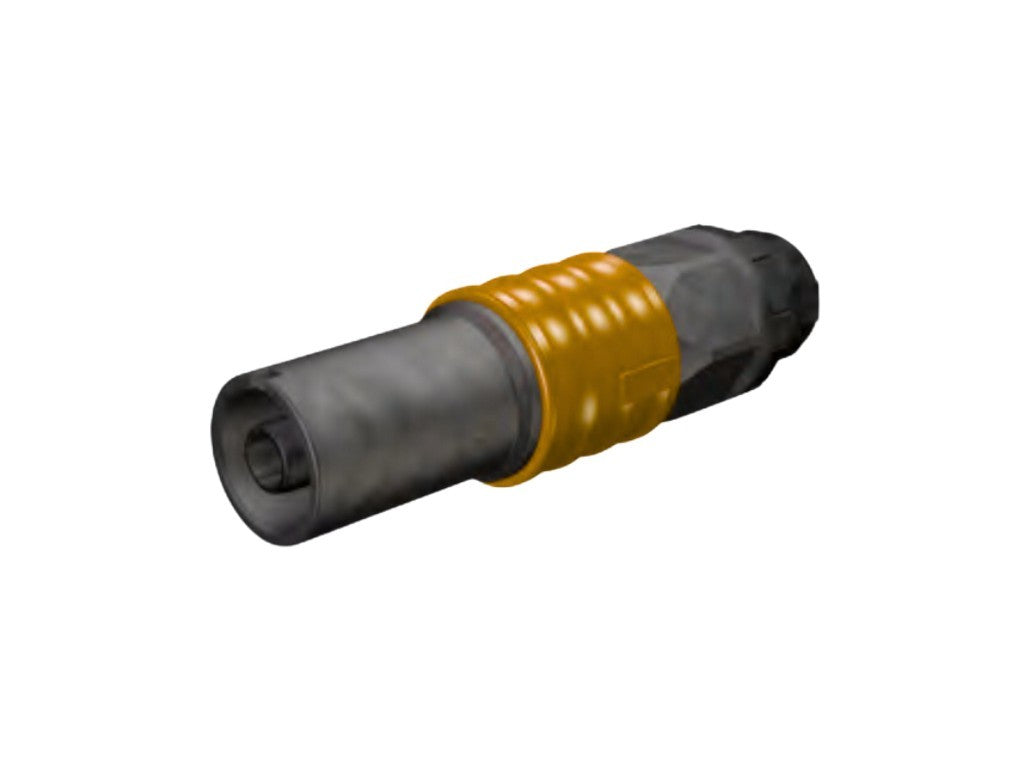

The STAUBLI 15.0683C1-27 is a single-pole, insulated circular connector for the larger series of Stäubli connections with a contact diameter of 21 mm. It belongs to Type KST21/M50/400-C, which is listed in the catalogue with C1 as the standard code and colour code 27, i.e. brown.
It is a plug connection used where high current needs to be safely transmitted with a stable mechanical connection. In practice, this makes sense in installations, temporary power supply, emergency power solutions, and other industrial environments where the connection needs to be quick to install and also withstand rough use. Stäubli describes the series with a bayonet lock, so the plug is locked by twisting it into place. This makes connecting and disconnecting simple, but also helps to keep the connection securely locked during operation.
For this type, the relevant mounting method is crimp, and the series also supports colour and mechanical coding, so that incorrect connection can be avoided. Accessories such as the protective cap VK-S21 can be used when the connection is not in use, helping to protect the contact part from dirt and moisture.
If you work with these connectors in panels, aggregates, test fields, or mobile power supplies, it is especially the robust construction, coding, and secure locking that make the series practical to work with.
See datasheet from the manufacturer
Typical applications
- Temporary power supply
- Emergency power supply
- Industrial installations
- Aggregates and test fields
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0683C1-27
- Type: KST21/M50/400-C
- Series: Round connectors, single-pole, insulated, Ø 10 mm – 21 mm
- Contact diameter: 21 mm
- Coding: C1 (standard code)
- Colour code: 27
- Colour: brown
- Mounting method: crimp
- Accessories: VK-S21 protective cap
The content is AI-generated - we reserve the right for errors.
Contact HIN for further product information.
