STAUBLI 15.0611-23

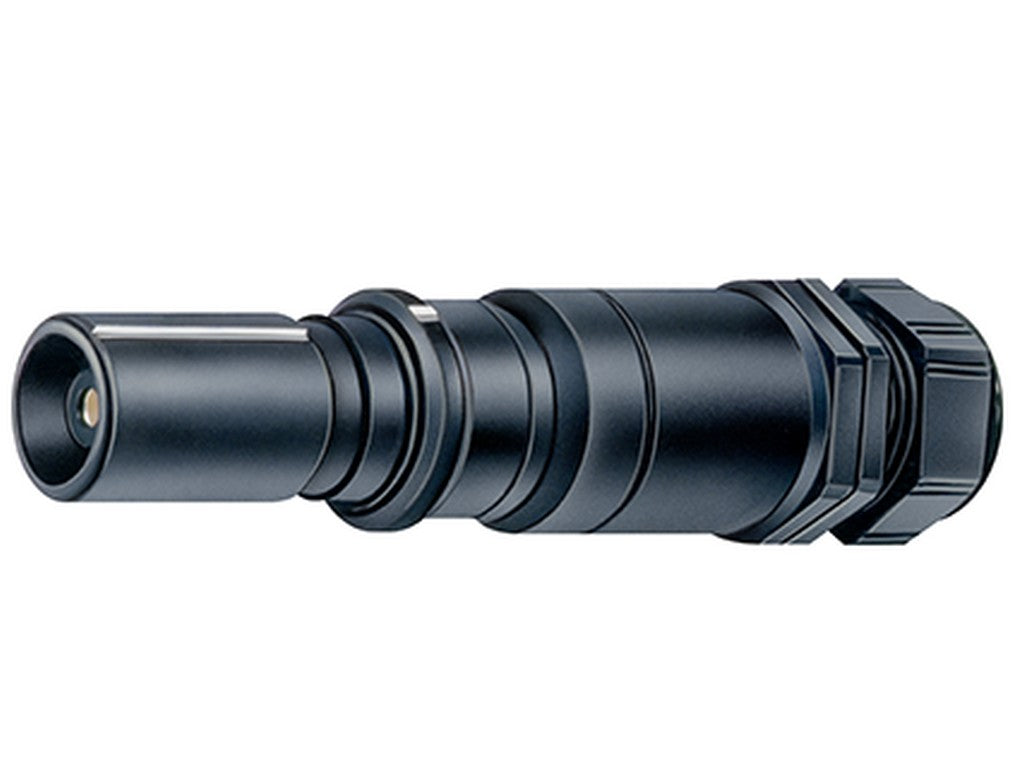

The STAUBLI 15.0611-23 is a circular plug in Stäubli’s 16BV series. It is used when a solid and mechanically secure connection is needed on a flexible cable, and the connection is locked with a bayonet coupling. This makes it suitable for environments where the plug needs to be connected and disconnected in a controlled manner, without coming loose during operation.
The connection is made with crimping, so the conductor terminates in a fixed joint instead of a screw connection. In this variant, it is designed for a conductor cross-section of 50 mm², and the cable entry is specified for an outer diameter of 15–28 mm. This makes it relevant when working with heavier flexible cables in a professional installation.
The specified dimensions also show that this is a physically large plug: the total length is approximately 209 mm, and the outer diameter is about 51.5 mm. The datasheet also specifies a crimp sleeve with an outer diameter of 10 mm and a maximum conductor diameter of 14 mm.
Typical applications
The plug is typically part of solutions where robust cable connections are necessary, and where a bayonet coupling and crimp connection suit the design of the system.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0611-23
- Part of Stäubli 16BV circular connector series
- Plug: KST16BV-NS/M40-50H
- Connection: bayonet coupling
- Termination: crimp
- Designed cable types: flexible cables, class 5
- Rated conductor cross-section: 50 mm²
- Cable gland, Ø range: 15–28 mm
- Overall length: approx. 209 mm
- Outer diameter: approx. 51.5 mm
- Crimp sleeve, outer Ø: 10 mm
- Max. conductor diameter: 14 mm
