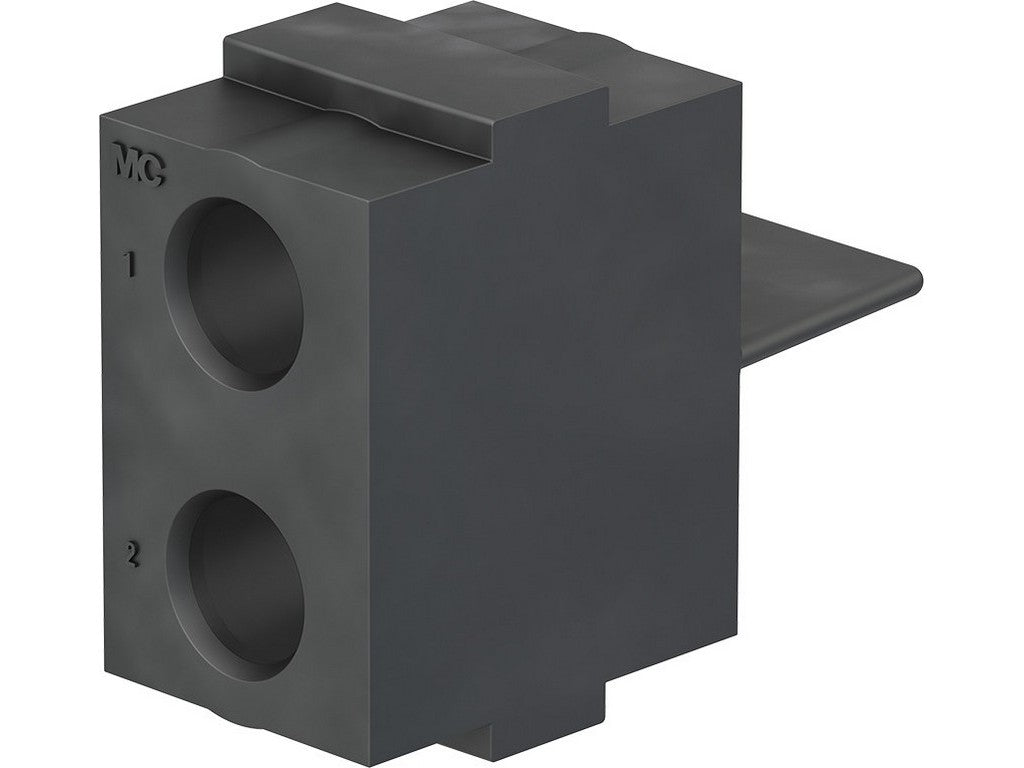

STAUBLI 33.4000
The Stäubli 33.4000 is a 2-pole contact carrier for the CombiTac uniq series. It is used with 1.5 GHz coaxial modules and functions as the part that holds and positions the contact in the connection. In practice, it is a spare part included in the construction of a modular connector.
The contact carrier is made of EPTR, which is a resilient plastic material. This provides a robust yet flexible construction, which is relevant in modular connections where parts must be able to be assembled precisely and work stably over time. It can be used on both the socket and pin side, making it suitable for various types of constructions within the same system.
The CombiTac system is used when multiple connection types are to be combined in a single solution. Here, the focus is on the mechanical part around the coaxial connection, not the signal transmission itself. Therefore, the contact carrier is important when building a system solution where fit, assembly, and physical construction must be properly integrated.
Typical applications
- CombiTac uniq configurations with 1.5 GHz coaxial modules
- Modular connectors where the same contact carrier can be used on both the socket and pin side
- Technical installations operating within the specified temperature and pollution degree limits
Specifications
- Manufacturer: STAUBLI
- MPN: 33.4000
- Type: CT-E8-2 pin carrier
- 2-pole contact carrier
- For 1.5 GHz coaxial modules
- Material: EPTR
- Can be used on both socket and pin side
- Temperature range: -40 °C to +90 °C
- Pollution degree: 2
See datasheet from the manufacturer
