Product Overview

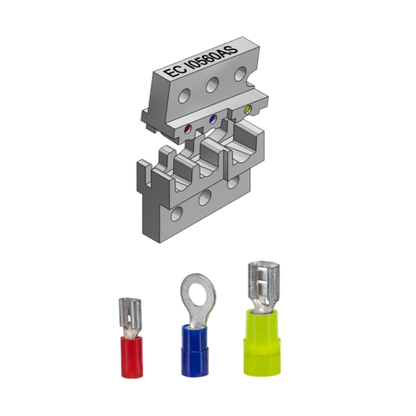

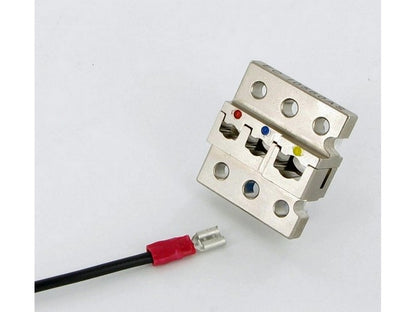

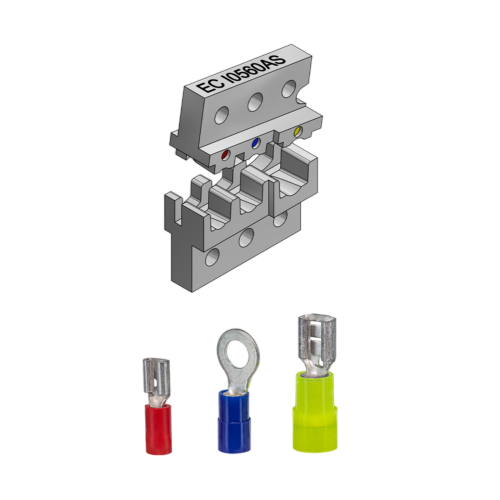

The GLW crimping die set EC I0560AS (item no. 005016) is a die set designed for crimping insulated terminals. The manufacturer states that the product is suitable for conductor cross-sections of 0.5–6 mm² and uses an asymmetrical crimping profile, which is described as ideal for terminals with insulation crimps.
Function and Application
The EC I0560AS crimping die set is designed to create the mechanical connection between the conductor and the terminal by crimping the insulated part. The information from the manufacturer clearly specifies the covered conductor area (0.5–6 mm²) and that the profile is asymmetrical. These points are crucial for matching the die set to the correct terminals.
Compatibility and Accessories
- Compatible with locator models: EC LOC28L, EC LOC48L, EC LOC63L, EC LOC100L, and EC LOC100LL.
- The manufacturer refers to protection cover: EC PC06.
Typical Applications
On the manufacturer's product page, the EC I0560AS is listed as a die set specifically for insulated terminals with conductor cross-sections of 0.5–6 mm². This means it is typically used for crimping insulated terminals, especially where the terminal has an insulation crimp, for which the die set is designed.
Important Notes
The description from GLW highlights the die set's asymmetrical crimping profile and its stated compatibility with specific locator models. Users should therefore verify the match between the terminal and the mentioned locator models before installation.
Specifications
- Product name: GLW crimping die set EC I0560AS.
- Manufacturer: GLW.
- Manufacturer's item number: 005016.
- Application: Die set for insulated terminals.
- Conductor cross-section: 0.5–6 mm².
- Crimping profile: Asymmetrical.

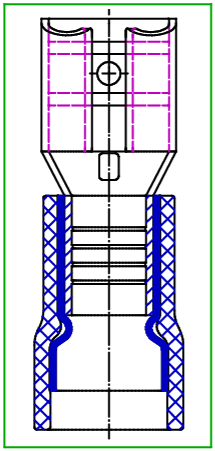

- Suitable for: Terminals with insulation crimp (stated by the manufacturer).
- Compatibility: EC LOC28L, EC LOC48L, EC LOC63L, EC LOC100L, EC LOC100LL.
- Referenced accessory: Protection cover EC PC06.
