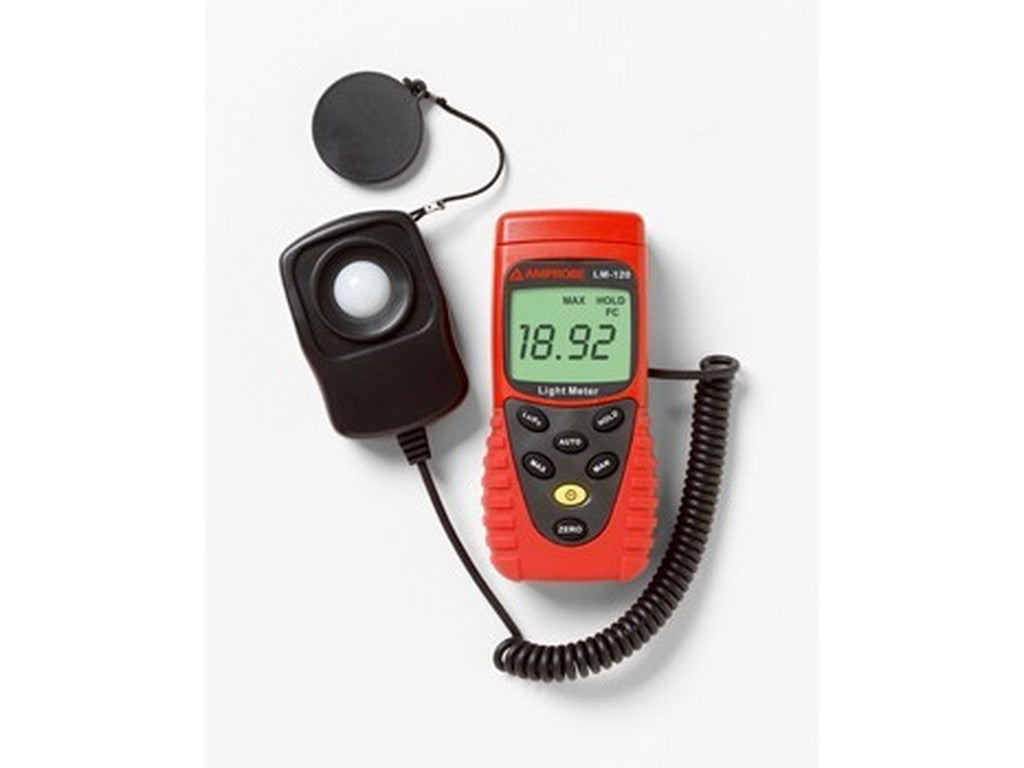

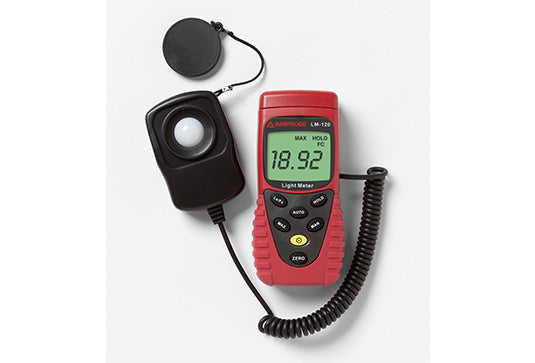

Amprobe LM-120
The Amprobe LM-120 is a portable digital lux meter for measuring visible light from fluorescent lamps, metal halide, high-pressure sodium, and incandescent lamps, among others. It is used when you want a concrete number for the illumination level in lux or foot-candles, and the scale can be switched directly on the front.
It is a practical measuring instrument for work where the light level needs to be checked, regulated, or documented. The LM-120 has both autoranging and manual range, so you can let the instrument choose the range automatically or control it yourself if it suits the task better. The measurement range goes up to 200,000 lux, and the sensor is built with a silicon photodiode and filter, which is the type of construction typically seen in professional light measurement.
During use, it can freeze a value with data hold, show the highest and lowest measurement with Min/Max, and be reset with the zero function before a new measurement. It also has auto power off, so the battery is not discharged unnecessarily, and comes with a protective cap for the sensor. In practice, this makes it easy to carry around in a service or operation situation where you quickly need to check light conditions in several places.
See datasheet from the manufacturer
See product video from the manufacturer

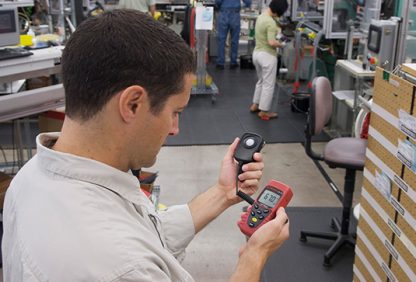

Typical Applications
- Measurement of illumination levels in buildings and work areas
- Checking light from existing luminaires
- Adjusting brightness in connection with operation and maintenance
- Control measurements with visible light from various light sources
Specifications
- Manufacturer: AMPROBE
- MPN: 3052353
- Model: LM-120
- Measurement units: lux and foot-candles
- Measurement range: up to 200,000 lux / 20,000 foot-candles
- Functions: autoranging, manual range, data hold, Min/Max, zero function, auto power off
- Sensor: silicon photodiode with filter
- Display: 3 1/2 digit LCD
- Power supply: 9 V battery

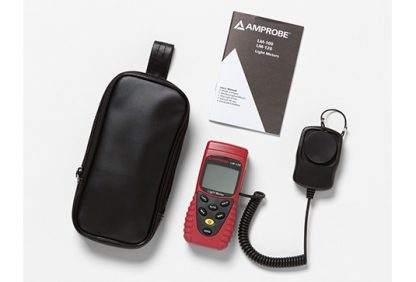

- Comes with: 9 V battery, carrying case, and user manual
- GTIN/EAN: not specified in verified data
