This soldering tip from Weller

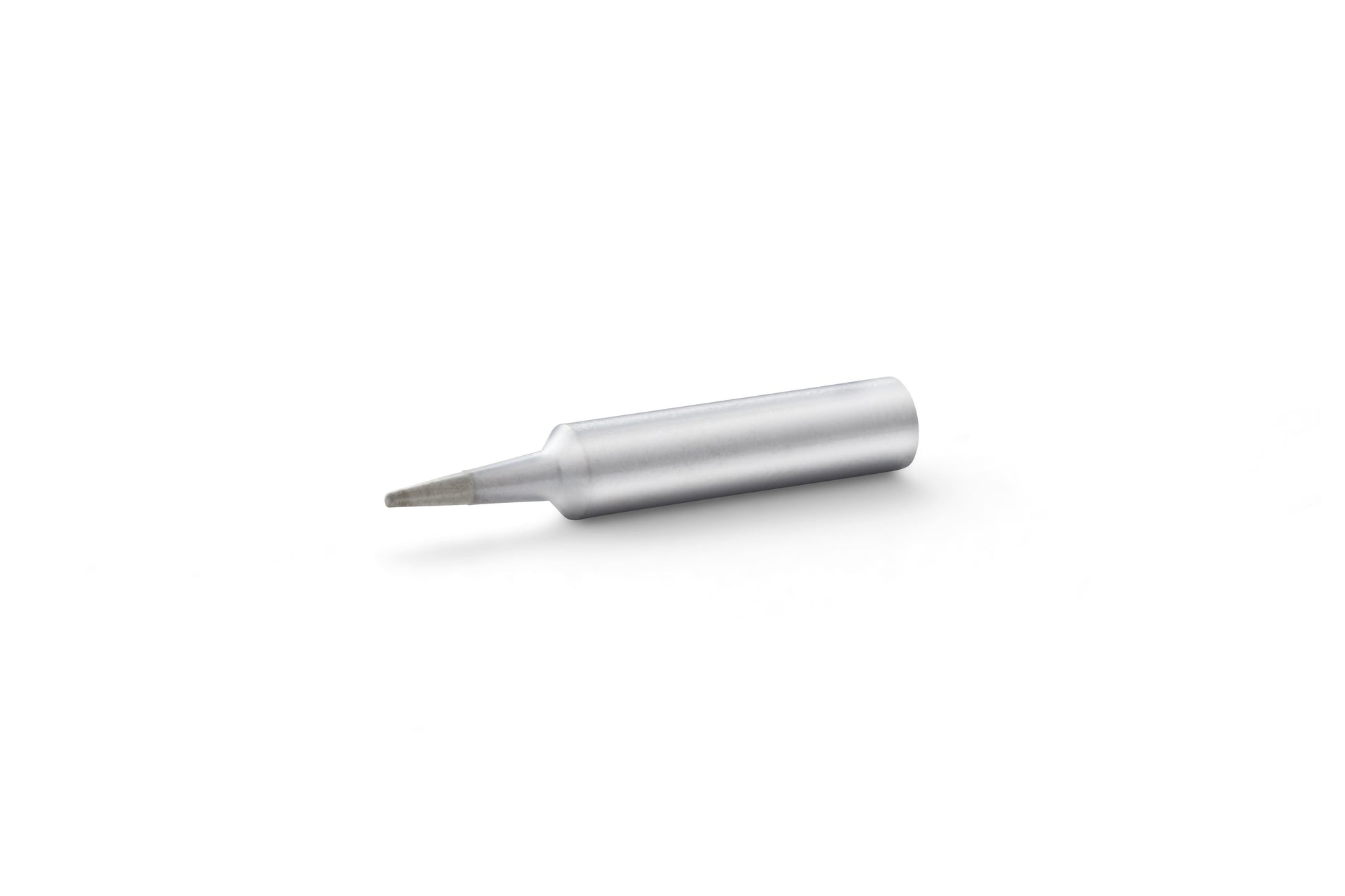

The Weller T0054485999 (XNT H) is a chisel-shaped soldering tip designed for the XNT series. The product is identified as an HM XNT tip with dimensions of 0.8 x 0.4 mm and a tip length of 1.1 in (28 mm). The Weller T0054485999 is supplied in packs of 1 and is specified for use with Weller soldering irons WXP 90, WTP 90, WXP 65, and WP 65.
Function and design
- Tip type: HM XNT (XNT H)
- Shape: chisel

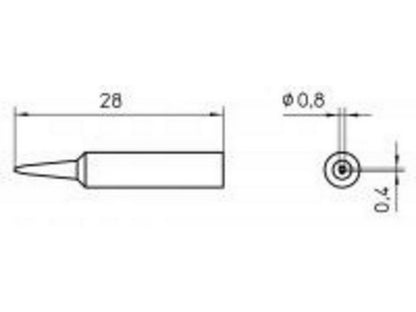

- Dimensions: 0.8 x 0.4 mm
- Tip length: 1.1 in (28 mm)
- Package quantity: 1 per pack
The product family is listed as XNT Soldering Tips. According to the manufacturer, the XNT series is designed to deliver maximum power and response for demanding, high-mass soldering tasks and provides a balance between power, control, and operating costs. The product's identity and technical basic data have been verified on the manufacturer's product page and data sheet.
Documentation
For technical details and the official data sheet from the manufacturer, see the following reference:
See data sheet from the manufacturer
Typical applications
Used for difficult, high-mass soldering tasks and situations requiring high power and fast temperature response, in accordance with the manufacturer's description of the XNT series. The product's compatibility with specific Weller models indicates which handles/tips are intended.
Specifications
- Manufacturer: Weller
- Manufacturer part number: T0054485999
- Product name: XNT H
- Tip type: HM XNT
- Shape: chisel
- Dimensions: 0.8 x 0.4 mm
- Tip length: 1.1 in (28 mm)
- Compatibility: WXP 90, WTP 90, WXP 65, WP 65
- Quantity per package: 1
- Product family: XNT Soldering Tips
- UPC: 037103254641
