Product Overview

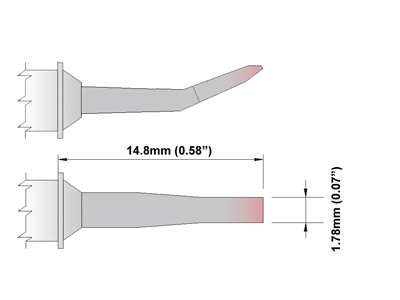

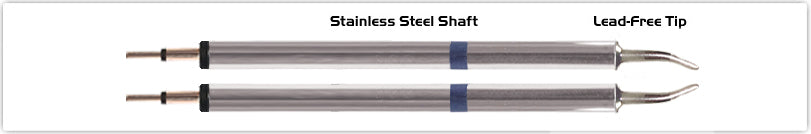

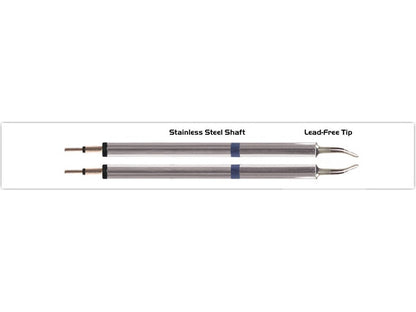

The K60TZ018 is a set of KTZ series tweezer cartridges in a long-reach chisel geometry from THERMALTRO. The product is supplied as a pair of cartridges and is specified as a 60-type cartridge with a stated operating temperature range of 325°C to 358°C. Tip width and length are specified as 1.78 mm (0.07") and 14.80 mm (0.58") respectively. All components are RoHS compliant and lead-free.Technical Description
The K60TZ018 is designed as a set of tweezer cartridges in a long-reach chisel configuration. Technical information, confirmed by the manufacturer's documentation, indicates a 60-series cartridge type and tip style as "Tweezers". The manufacturer also states that tip idle temperatures will typically vary within +/-1.1°C depending on geometry and measurement method.Typical Applications
The K60TZ018 is specified for use with the Thermaltronics SHP-KTZ tweezer handpiece and is designed for temperature-sensitive soldering tasks as indicated by the manufacturer. There are direct compatibility indications for a range of Thermaltronics stations and sets:- TZ-KIT-3
- TMT-2000PS
- TMT-2000S-K and TMT-2000S-KM
- TMT-2000S-P and TMT-2000S-PM
- TMT-2000S-SM and TMT-2000S-TZ
Documentation
For more technical details and manufacturer specifications, please refer to the Thermaltronics technical datasheet: See datasheet from manufacturerSpecifications
- Product: K60TZ018 (pair of KTZ series tweezer cartridges)
- Tip Style: Tweezers
- Tip Geometry: Long-reach chisel
- Tip Width: 1.78 mm (0.07")
- Tip Length: 14.80 mm (0.58")
- Cartridge Type: 60 Type Cartridge
- Operating Temperature Range: 325°C - 358°C
- RoHS Compliance: Yes (all components lead-free)
- Typical Idle Temperature Variation: ±1.1°C (depends on geometry and measurement method)
- Compatible with: TZ-KIT-3, TMT-2000PS, TMT-2000S-K, TMT-2000S-KM, TMT-2000S-P, TMT-2000S-PM, TMT-2000S-SM, TMT-2000S-TZ
