Tip cartridge: TM70C300 from Thermaltronics
The TM70C300 is a Thermaltronics T Series 700-type tip cartridge with a conical tip geometry. The product is specified for soldering tasks within the 700 series and is listed as RoHS compliant and lead-free. The TM70C300 is specified for use with Thermaltronics TMT-5000S-1 and TMT-5000S-2 soldering systems.
Technical description

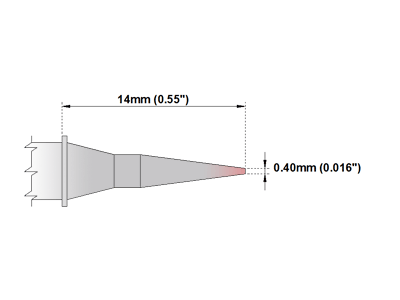

- Tip style: Conical
- Tip width: 0.40 mm (0.016")
- Tip length: 14.00 mm (0.55")
- Series: 700 Type Cartridge
- Temperature range (specified for 700 series): 350°C - 398°C
- Material: All components are RoHS-compliant and lead-free
- ESD: Listed as ESD FREE in manufacturer documentation
- For use with: TMT-5000S-1, TMT-5000S-2
Further information from the manufacturer
The tips in the T Series utilize Curie Heat Technology according to the manufacturer, which is described as the basis for the tips' heat transfer and durability. The manufacturer also states that idle temperatures will typically vary with tip geometry within a temperature series.
Documentation
See datasheet from the manufacturer
Typical applications
Stated in the manufacturer's material: 700 Series tips are designed for standard soldering applications. The TM70C300 is specified for use with TMT-5000S-1 and TMT-5000S-2 soldering systems as stated by Thermaltronics.
Sources
Specifications
- Product name: TM70C300
- Type: T Series 700-type tip cartridge
- Tip geometry: Conical
- Tip width: 0.40 mm (0.016")
- Tip length: 14.00 mm (0.55")
- Temperature range: 350°C - 398°C (700 series, specified by manufacturer)
- RoHS Compliant: Yes (all components listed as RoHS compliant and lead-free)
- For use with: TMT-5000S-1, TMT-5000S-2
