Product Overview

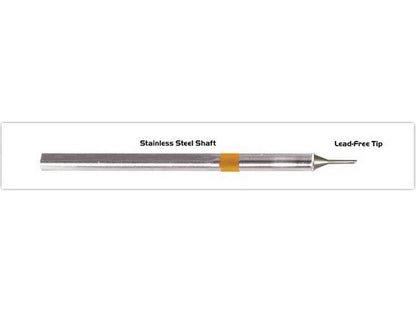

This S Series tip cartridge from Thermaltronics is designated as Thermaltronics S75BVF010. The product is a bevel 60° tip with a tip width of 1.00 mm (0.04") and is specified as "Tin Area Face Only". The Thermaltronics S75BVF010 is a 75-type cartridge with a stated temperature range of 350°C - 398°C and is RoHS compliant (lead-free). It is listed for use with TMT-1000S-S, TMT-2000S-SM, TMT-2200S-2SM, SP200, and MFR systems.Technical Details
- Tip Style: Bevel 60°
- Tip Width: 1.00 mm (0.04")
- Tip Length: 15.00 mm (0.59")
- Specification: Tin Area Face Only
- Series/Type: 75 Type Cartridge
- Temperature Range (stated): 350°C - 398°C
- RoHS Compliant / Lead-Free
- ESD Free
- For use with: TMT-1000S-S, TMT-2000S-SM, TMT-2200S-2SM, SP200, MFR (MFR-PS1100, MFR-PS2200)
The manufacturer's description states that S Series tips are based on Curie Heat Technology, which provides rapid response to thermal demands for each solder joint, good heat transfer, and durability. Please note that the manufacturer states that idle temperature is typically within +/-1.1°C, but there may be variation depending on tip geometry and measurement method.
For further technical documentation and confirmation of the above specifications, please refer to the manufacturer's datasheet:
Typical Applications
The Thermaltronics S75BVF010 is listed as a 75 Series tip designed for standard soldering applications. This indicates that the tip is suitable for common soldering tasks within the application category specified by the manufacturer.
Specifications
- Product: Thermaltronics S75BVF010
- Tip Style: Bevel 60°
- Tip Width: 1.00 mm (0.04")
- Tip Length: 15.00 mm (0.59")
- Type: 75 Type Cartridge
- Temperature Range: 350°C - 398°C
- Material/Compliance: RoHS Compliant / Lead-Free
- ESD Status: ESD Free
- Compatibility: TMT-1000S-S, TMT-2000S-SM, TMT-2200S-2SM, SP200, MFR (MFR-PS1100, MFR-PS2200)
