WSP80 Soldering Iron from WELLER
Description

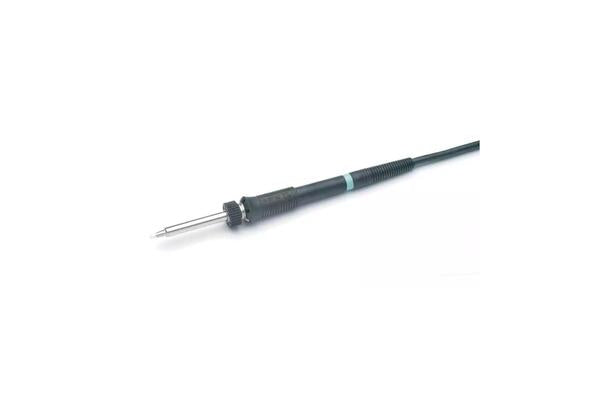

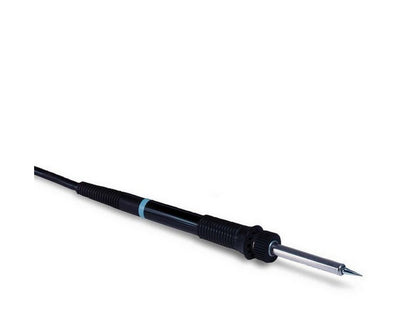

This WSP80 soldering iron (Item No. T0052916199N) from WELLER is an 80 W, 24 V electric soldering iron with Silver‑Line Heating Technology. The tool is specified as ESD‑safe and uses the LT family of soldering tips. The heating element is specified for fast heat-up.Documentation
For technical details and original manufacturer data, see the manufacturer's datasheet:
See datasheet from the manufacturer
Typical Applications
- Used for soldering tasks on medium components with high energy requirements.
- Used for universal soldering tasks in combination with WT stations and WR rework stations.
Operating Characteristics
- Power: 80 W.
- Supply voltage: 24 V.
- Temperature range (specified): 50–450 °C (150–850 °F).
- Approx. heating time: 10 seconds from 50–350 °C.
- Heating element: Silver‑Line Heating Technology.
- Tip type: LT family.
- ESD safe: Yes.
Specifications
- Product name: WSP80 (Item No. T0052916199N).
- Power: 80 W.
- Supply voltage: 24 V.
- Temperature range: 50–450 °C (150–850 °F).
- Heating time (50–350 °C): approx. 10 seconds.
- Silver‑Line Heating Technology: Yes.
- ESD Safe: Yes.
- Tip type: LT.
- Barrel: T0058744710.
- Inert Gas Function: T0058744847.
- Integrated Direct Extraction: T0052918699, T0052918599.
- Supply units list: PU81, PUD81, PUD81i, PUWAD101, PUD121, PUWAD101IG, PUD151, WD1, WD1M, WR2, WR3M, WR3ME, WT1, WT1H, WT2M.
- Product family: WT Soldering Irons.
Source: Manufacturer's datasheet (WELLER).
