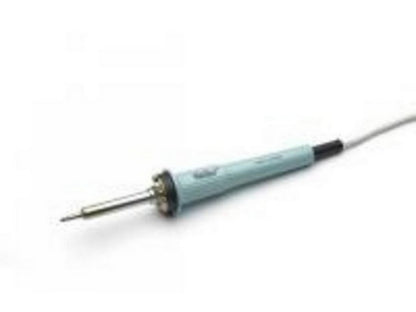

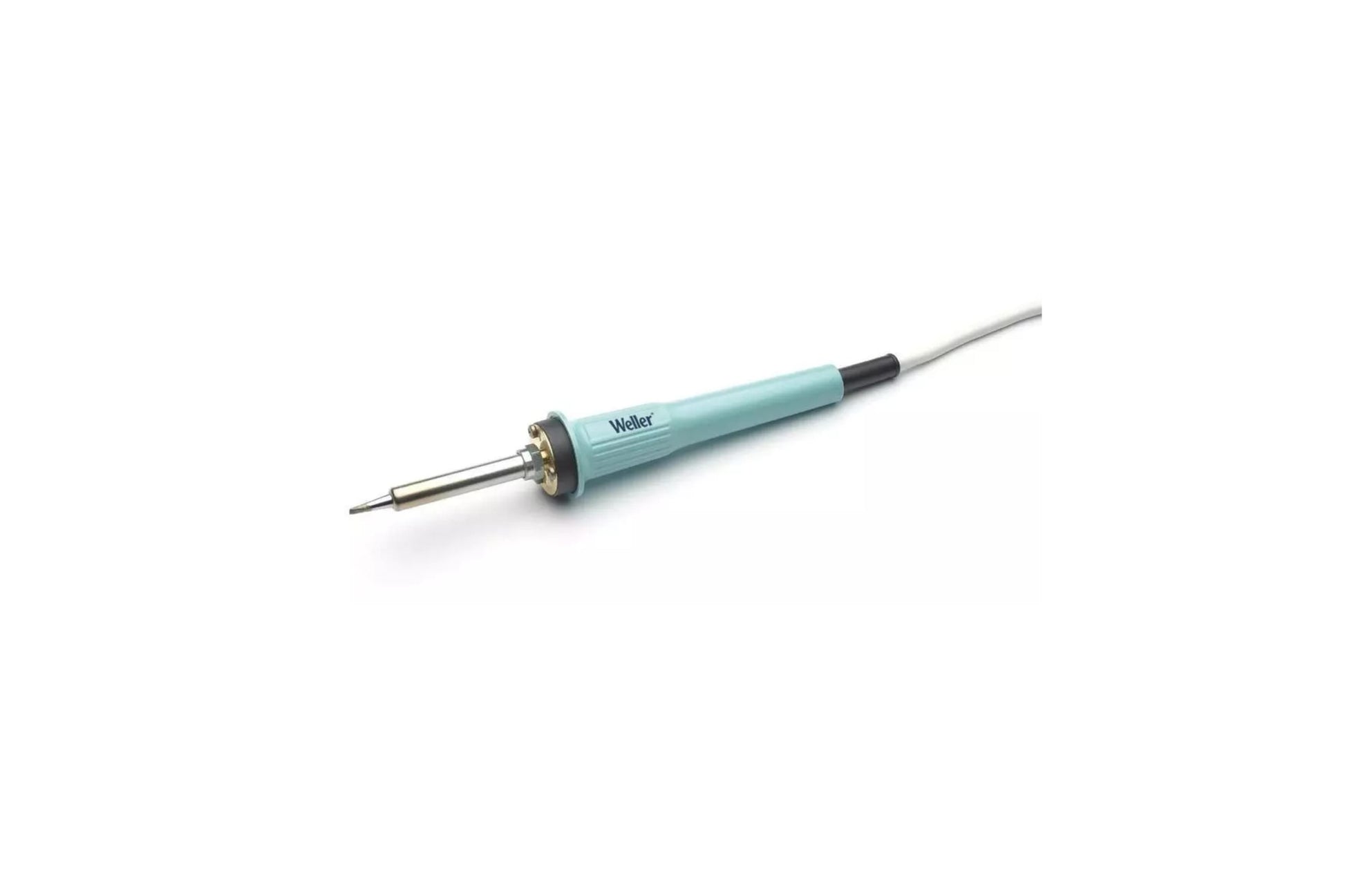

Weller TCPS Magnastat Soldering Iron
The Weller TCPS Magnastat (Item No. T0053210599N) is a 50 W, 24 V soldering iron featuring Weller's Magnastat ferro-magnetic sensor system for temperature control. The Magnastat system changes its magnetic properties at predetermined temperatures, activating a magnetically driven switch that turns the heating element on or off to provide extra power during soldering or reduce power during inactivity.
Function and Construction
- Magnastat ferro-magnetic sensor system for automatic on/off at selected tip temperature.
- Supplied with adapter PT 7 (370 °C) and soldering tip LT M.
- Three-wire silicone cable and plug for connection to the Weller WTCP 51 Magnastat soldering station.
- Indicated as ESD-safe in the manufacturer's technical data.
- Silver Line Heating Element Technology mentioned in technical data.
- Hard grounded and designed for PT soldering tips.
Temperature Selection
The working temperature is selected by replacing the temperature-sensitive soldering tip. The specified tip temperatures are 260 °C, 310 °C, 370 °C, 425 °C, and 480 °C. Temperature codes in the manufacturer's text are indicated as 5=260 °C, 6=310 °C, 7=370 °C, 8=425 °C, and 9=480 °C.
Documentation
Detailed technical information and confirmation of the above specifications can be found in the manufacturer's datasheet: See datasheet from manufacturer.
Specifications
- Product Name: Weller TCPS Magnastat (Item No. T0053210599N)
- Power: 50 W
- Voltage: 24 V
- Temperature Control: Magnastat ferro-magnetic sensor system
- Included: Adapter PT 7 (370 °C) and soldering tip LT M
- Temperature Settings (tip selection): 260 °C, 310 °C, 370 °C, 425 °C, 480 °C
- Cable: 3-wire silicone cable and plug for WTCP 51 Magnastat station
- ESD Safe: Yes (indicated in technical data)
- Silver Line Heating Element Technology: Yes (indicated in technical data)
- Integrated Direct Extraction reference: T0052512599 (indicated in technical data)
- Product Family: Low Voltage Soldering Irons
