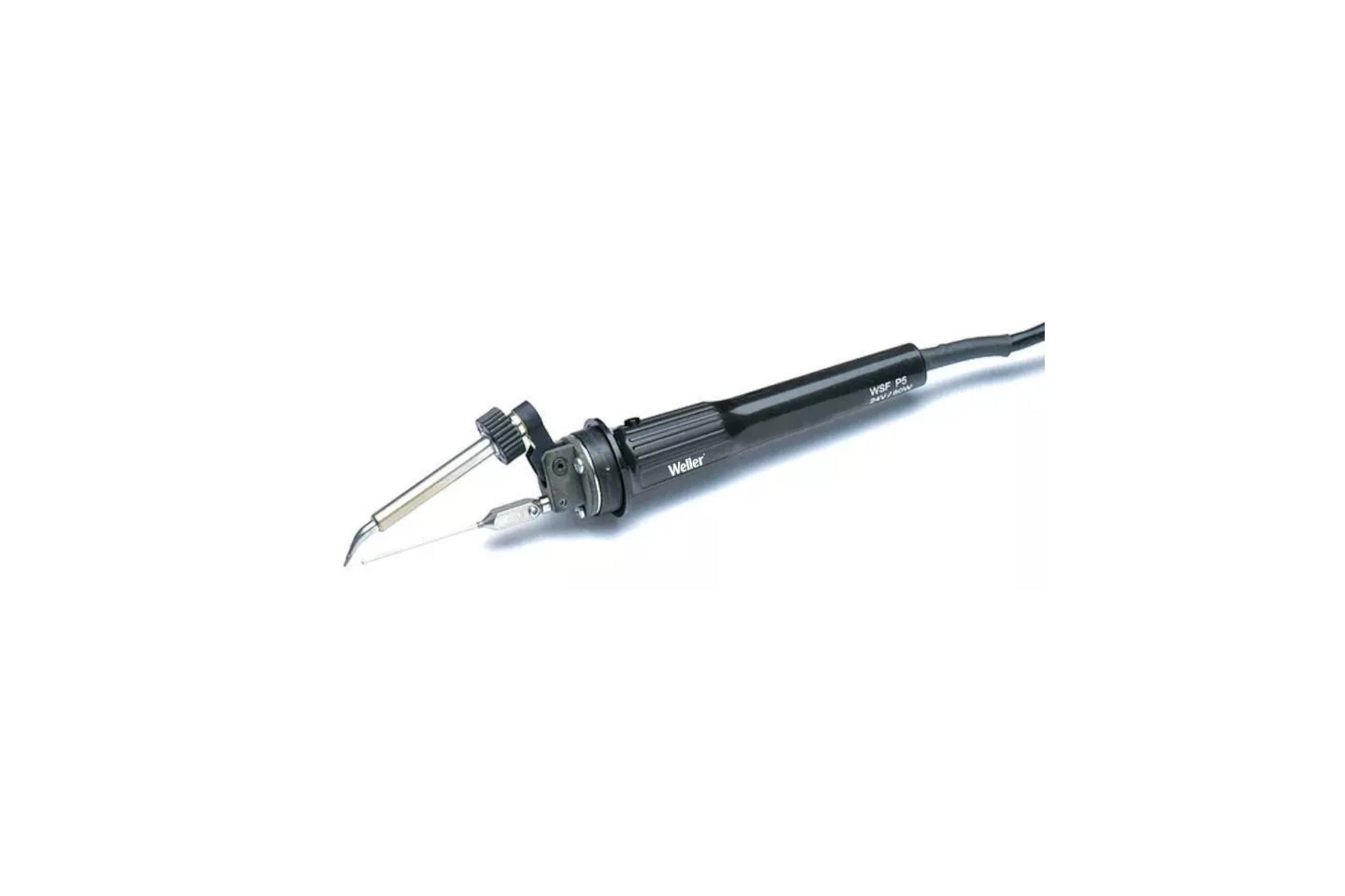

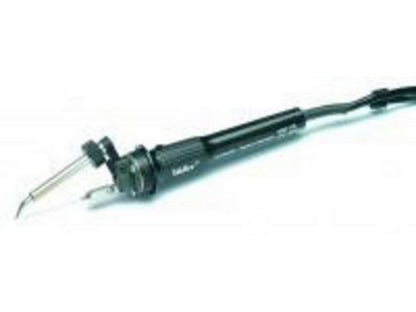

WSFP5 Low Voltage Soldering Iron from Weller
The WSFP5 (Item No. T0052812199N) is a low voltage soldering iron from Weller, as documented on the manufacturer's product page. The product is specified as an 80 W, 24 V soldering iron supplied with an LT HX soldering tip and utilizes Silver Line Heating Element Technology. The temperature range is stated as 50–450 °C.
Functional characteristics
- Power: 80 W
- Supply voltage: 24 V
- Included tip: LT HX
- Silver Line Heating Element Technology: Yes (stated by the manufacturer)
- Temperature range: 50–450 °C
- Heat-up time (approx., 50–350 °C): 10 seconds
Typical applications
The WSFP5 is specified for soldering wires with a diameter of 0.5–0.8 mm and is therefore suitable for tasks where these wire dimensions are relevant. This application is directly stated in the manufacturer's product description.
Related components
- Barrel: T0058744710 (listed as related part)
- Integrated Direct Extraction: T0052812699 (listed as related part)
Documentation
For detailed information and confirmation of the data mentioned above, please refer to the manufacturer's datasheet:
View datasheet from manufacturer
Specifications
- Product name: WSFP5
- Item No: T0052812199N
- Product family: Low Voltage Soldering Irons
- Power: 80 W
- Voltage: 24 V
- Wire diameter (specified): 0.5 - 0.8 mm
- Included tip: LT HX
- Heat-up time (50–350 °C): approx. 10 seconds
- Temperature range: 50 - 450 °C
- Silver Line Heating Element Technology: Yes
- UPC: 9337103341121
