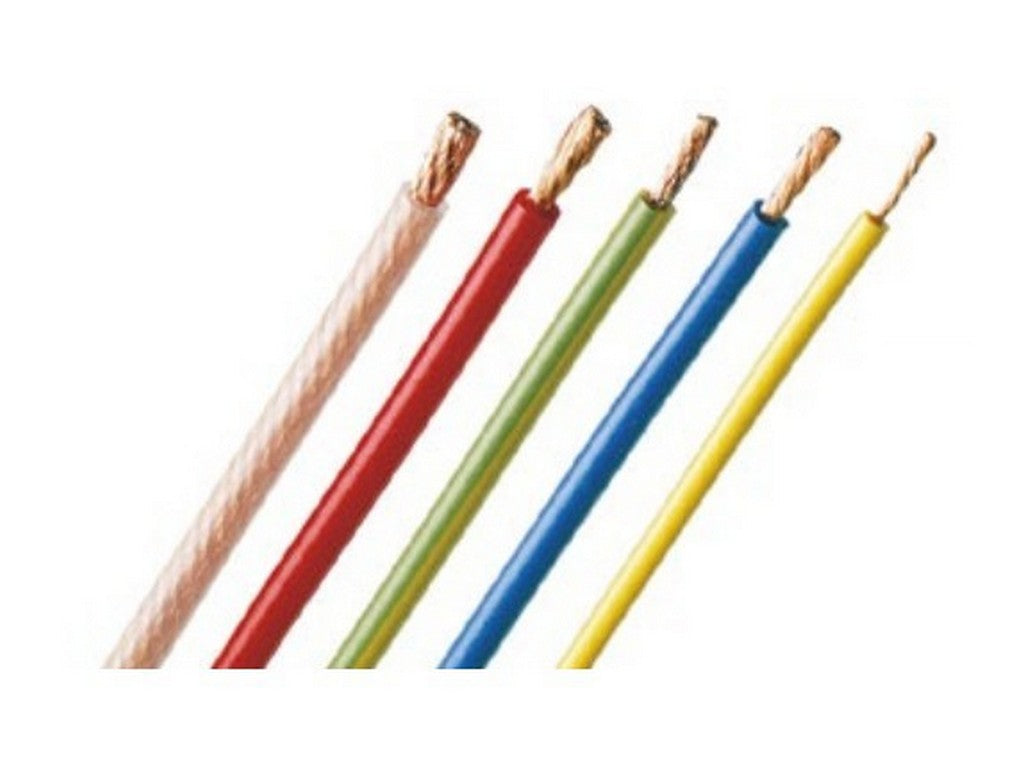

STAUBLI FLEXI-S 4.0
STAUBLI FLEXI-S 4.0 is a highly flexible cable with reinforced PVC insulation, designed for professional connections where a solid conductor with high bending flexibility is required. It has a nominal cross-section of 4.0 mm² and a conductor construction of 1036 x 0.07 mm, making it suitable when an easy-to-handle cable is desired for assembly and installation.
The cable is rated for 1000 V AC and 1500 V DC, as well as a rated current of 42 A. This makes it relevant in contexts where relatively high voltages and currents are used, and where flexible wiring is also needed. The total cable diameter is 4.8 mm, and the insulation thickness is 0.9 mm. The operating temperature ranges from -10 °C to +70 °C.
In practice, this is a cable chosen when the electrical task requires both mobility and a clear, technically constructed insulation. It is useful in installations and constructions where space, bends, and safe electrical dimensioning are important.
The cable is approved with UR, CE, UKCA, and EAC. Here you can also see the datasheet from the manufacturer: See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 60.7014-00121
- Product: FLEXI-S 4.0
- Nominal cross-section: 4.0 mm²
- Conductor construction: 1036 x 0.07 mm
- Rated voltage: AC 1000 V / DC 1500 V
- Rated current: 42 A
- Conductor diameter: 3.0 mm
- Total cable diameter: 4.8 mm
- Insulation thickness: 0.9 mm
- Insulation: PVC
- Operating temperature: -10 °C to +70 °C
- Approvals: UR, CE, UKCA, EAC
The content has been generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
