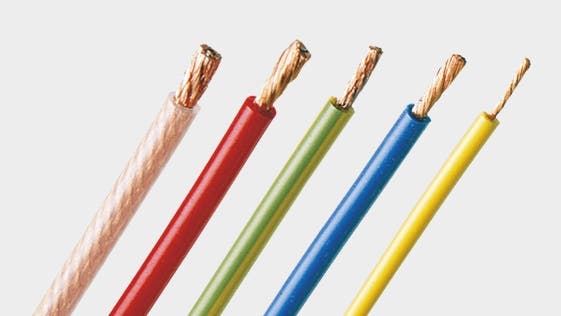

Stäubli FlexiStrom FLEXI-S 4.0 — flexible stranded conductor
This text describes the Stäubli FlexiStrom FLEXI-S 4.0 (part number 60.7014-*), a highly flexible stranded conductor with reinforced PVC insulation. The product is specified by STAUBLI and the information is based on the manufacturer's datasheet dated 02.2025.
Technical overview
- Product name: Stäubli FlexiStrom FLEXI-S 4.0 (60.7014-*)
- Conductor cross-section: 4.0 mm²
- Strand construction: 1036 × 0.07
- Conductor diameter: 3.0 mm
- Insulation material: PVC (reinforced)
- Cable diameter (total): 4.8 mm
- Insulation thickness: 0.9 mm
- Temperature range: -10 °C to +70 °C
- Rated voltage: AC 1000 V / DC 1500 V
- Rated current: 42 A
- Weight: 52.0 kg/km
- Approvals: UR, CE, UKCA, EAC
- Datasheet date: 02.2025
Documentation
For technical details and complete manufacturer information, please refer to the Stäubli FlexiStrom FLEXI-S 4.0 datasheet:
View datasheet from manufacturer
Specifications
- Part number: 60.7014-*
- Conductor cross-section: 4.0 mm²
- Strand construction: 1036 × 0.07
- Conductor diameter: 3.0 mm
- Cable diameter: 4.8 mm
- Insulation thickness: 0.9 mm
- Insulation material: PVC (reinforced)
- Rated voltage: AC 1000 V / DC 1500 V
- Rated current: 42 A
- Temperature range: -10 °C … +70 °C
- Approvals: UR, CE, UKCA, EAC
- Datasheet: 02.2025
- Weight: 52.0 kg/km
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
