Product Overview

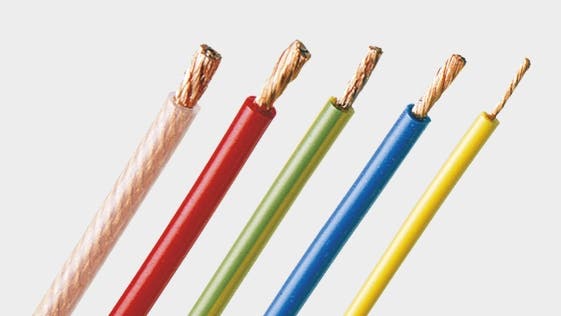

This FLEXI-S 10 is a highly flexible multi-stranded conductor from STAUBLI. The FLEXI-S 10 has a conductor cross-section of 10 mm² and features reinforced PVC insulation. The description and technical data are based on the manufacturer's datasheet (revision 02.2025).
Key Features
- Multi-stranded, high flexibility (strand design specified by the manufacturer)
- Reinforced PVC as insulation material
- Rated values for voltage and current specified in the manufacturer's datasheet
Documentation
Technical data and approvals are provided in the manufacturer's datasheet. View manufacturer's datasheet
Specifications
- Product name: FLEXI-S 10
- Manufacturer: STAUBLI
- Manufacturer part number: 60.7017-10021
- Conductor cross-section: 10 mm²
- Strand design: 2556 x 0.07
- Conductor diameter: 4.8 mm
- Overall cable diameter: 7.0 mm
- Insulation type: PVC (reinforced insulation)
- Insulation thickness: 1.1 mm
- Rated values: AC 1000 V, 73 A / DC 1500 V, 73 A
- Operating temperature: -10 °C to +70 °C
- Weight (lead weight): 120.0 kg/km
- Approvals: UR, CE, UKCA, EAC
- Datasheet revision: 02.2025
Sources
- Manufacturer's datasheet: Stäubli, FLEXI-S 10 (02.2025)
