Product Overview

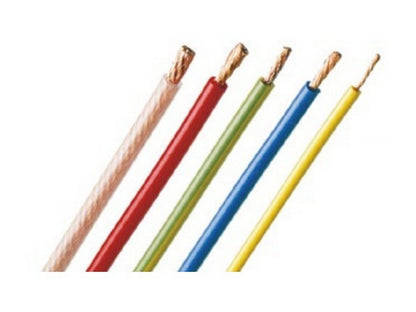

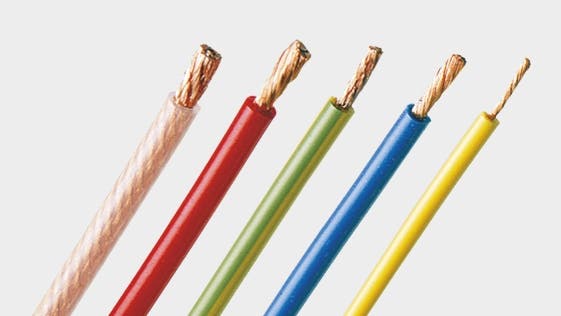

The FLEXI-S 10 from STAUBLI is a highly flexible multi-stranded conductor with reinforced PVC insulation. The product is identified by Stäubli part number 60.7017-10022 and is specified as a 10 mm² conductor with fine-stranded construction. The FLEXI-S 10 is described neutrally and technically without sales rhetoric.Function and Materials
The core of the FLEXI-S 10 consists of a multi-stranded conductor with a strand design of 2556 x 0.07 mm. The insulation is made of PVC (lead insulation PVC) with a specified insulation thickness of 1.1 mm. Cable construction and material selection are detailed in the manufacturer's technical data.Documentation
The manufacturer's technical datasheet provides the measured and standardized values for the product: See datasheet from the manufacturer.Specifications
- Product Name: FLEXI-S 10
- Manufacturer: STAUBLI
- Part Number / MPN: 60.7017-10022
- Cross-section (conductor cross-section): 10 mm²
- Strand design: 2556 x 0.07 mm
- Rated values: AC 1000 V, DC 1500 V
- Rated current: 73 A
- Cable outer diameter: 7.0 mm
- Conductor diameter: 4.8 mm
- Insulation thickness: 1.1 mm
- Insulation material: PVC
- Temperature range: -10 °C to +70 °C
- Lead weight: 120.0 kg/km
- Approvals: UR, CE, UKCA, EAC
