Product Overview

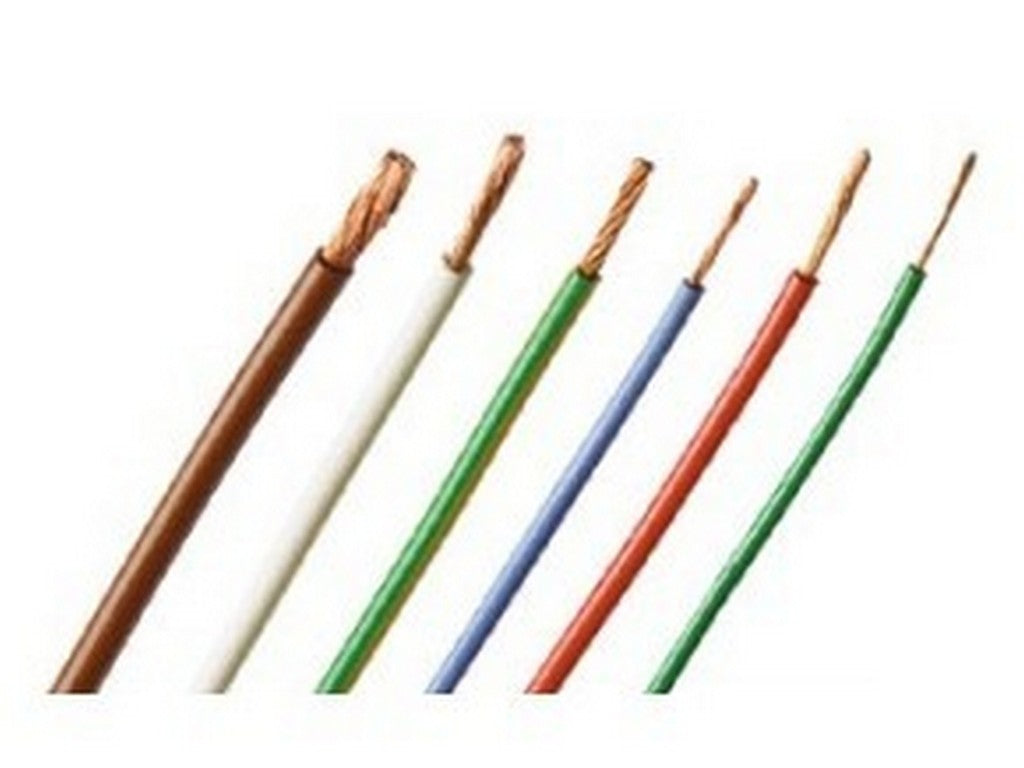

The FLEXI-E 0.25 is a highly flexible, basic insulated stranded conductor from STAUBLI. The product delivers a documented conductor cross-section of 0.25 mm² and is specified with rated values for voltage and current, making the product's function and application parameters verifiable.Material and Construction Data
The description of the FLEXI-E 0.25 specifies PVC as the insulation material and a stranded conductor construction. The strand or wire design is stated as 66 x 0.07 mm, indicating the number of strands and wire diameter. Additional construction dimensions are provided in the manufacturer's documentation.Documentation
This text is based solely on the manufacturer's datasheet. For detailed technical documentation, please refer to the manufacturer's datasheet: View datasheet from manufacturerSpecifications
- Product Name: FLEXI-E 0.25
- Manufacturer: STAUBLI
- Manufacturer Part Number: 60.7003-10021
- Conductor cross-section: 0.25 mm²
- Rated values: AC 500 V
- Rated current: 6 A
- Insulation material: PVC
- Temperature range: -10 °C ... +70 °C
- Strand design: 66 x 0.07 mm
- Lead weight: 4.8 kg/km
- Conductor diameter: 0.65 mm
- Cable diameter: 1.7 mm
- Insulation thickness: 0.5 mm
- Approvals: CE, UKCA, EAC
- Datasheet date: 02.2025
