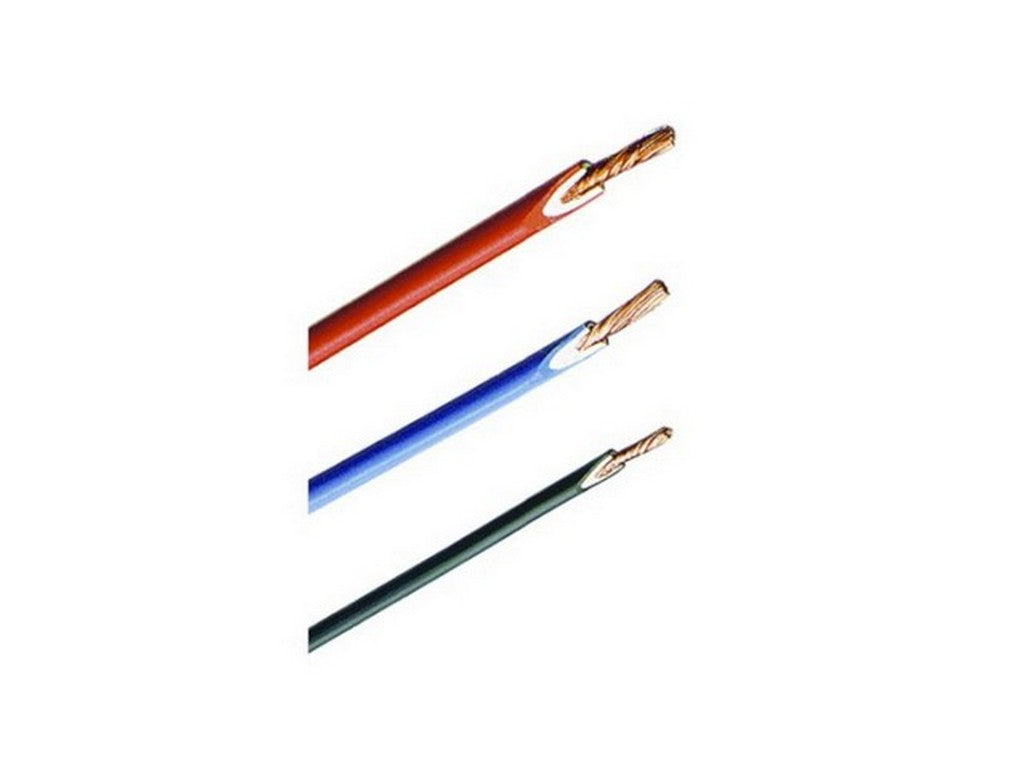

STAUBLI FLEXI-2V 0,75
The FLEXI-2V 0.75 is a highly flexible cable for tasks requiring a secure and agile connection. It has a nominal cross-sectional area of 0.75 mm² and reinforced double-layer PVC insulation, specified to provide high safety. This makes the cable suitable for professional installations where demands are placed on both handling and electrical data.
The fine strand construction of 196 x 0.07 mm makes the cable easy to work with, especially when it needs to be routed in equipment or assembled in more compact constructions. At the same time, it has a conductor diameter of 1.25 mm and an outer diameter of 3.5 mm, so it takes up relatively little space in relation to its flexibility. The insulation is PVC, and the temperature range is from -10 °C to +70 °C.
Strong voltage tolerance and a rated current of 15 A mean that the cable can be used in applications with requirements for clear electrical limits. It is a cable typically chosen when a flexible single conductor is desired, which is also built for safe use in technical environments.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 60.7028-10023
- Product: FLEXI-2V 0.75
- Nominal cross-section: 0.75 mm²
- Strand construction: 196 x 0.07 mm
- Conductor diameter: 1.25 mm
- Outer diameter: 3.5 mm
- Insulation thickness: 1.1 mm
- Insulation material: PVC
- Voltage rating: AC 1000 V / DC 1500 V
- Rated current: 15 A
- Temperature range: -10 °C to +70 °C
- Weight: 18.0 kg/km
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
