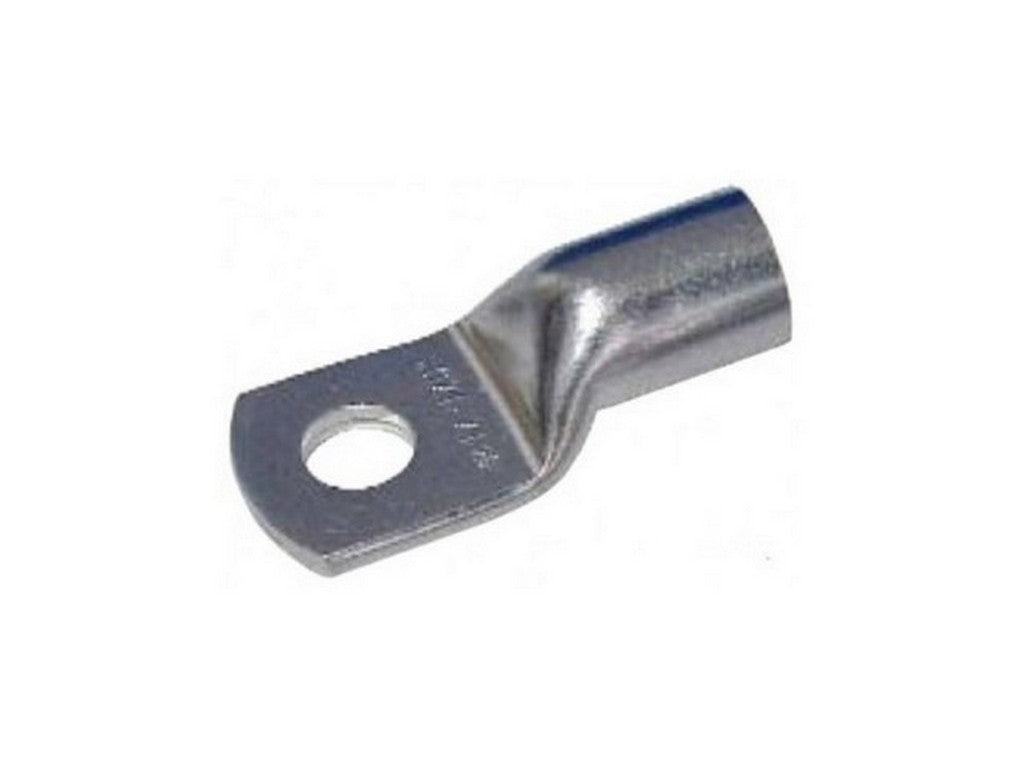

Tubular cable lug: ICR508SL
ICR508SL is a tubular cable lug (R-series) from the manufacturer specified as WEITKOWITZ/Intercable Tools. The product is made of Cu-HCP 99.9% copper and is electrotinned according to the manufacturer's product list. The variant designation SL indicates that the cable's insertion can be checked via a visible inspection hole.
Technical description
- Type: Tubular cable lug, R-series, SL-variant (sight/hole for verification of inserted conductor).
- Material: Cu-HCP 99.9% (copper), electrotinned — as stated in the product list.
- Suitable for: multi-stranded, fine-stranded, compacted multi-stranded and fine-stranded round and sector conductors, as well as solid conductors — as stated in the manufacturer's text.
Typical applications
ICR508SL is used for connecting and mechanically/electrically joining conductors with a specified cross-section. The visible inspection hole allows for verification of correct cable insertion before fastening.
Specifications
- Product name: ICR508SL.
- Manufacturer: WEITKOWITZ (listed via Intercable Tools product overview).
- Nominal cross-section: 50 mm².
- Screw size (connection): M8.
- Dimensions (stated in the product table): d1 = 10 mm, d3 = 14 mm, d2 = 8 mm, b = 20 mm, L = 40 mm, a = 19 mm.
- Net weight: 3.04 kg per 100 pieces.
Source
Product information and dimension data are verified via Intercable Tools product overview for the R-series (ICR-series).
Note: All the above information is taken directly from the manufacturer's product list/product overview and only contains the specifications explicitly stated therein.
