Product Overview

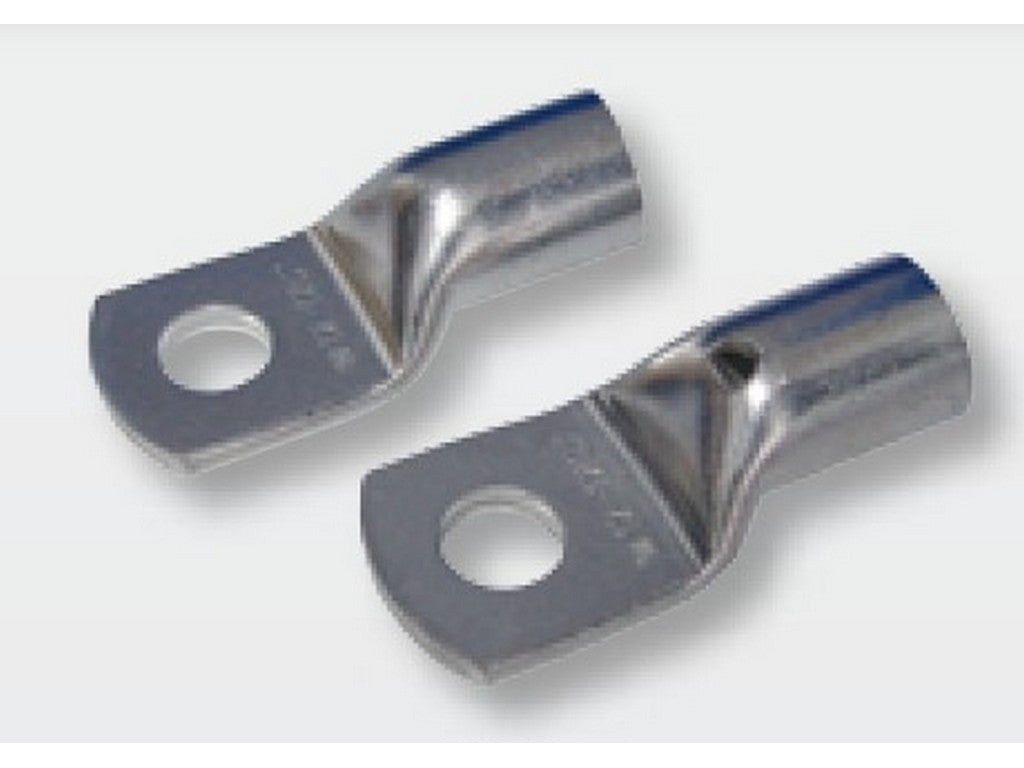

This tubular cable lug (Rohrkabelschuh) from the Intercable R-series with an inspection hole is documented as type number ICR506SL. The product is specified for a nominal cross-section of 50 mm² and uses metric screw thread M6. The inspection hole (Sichtloch) allows for visual verification that the conductor is correctly inserted before fastening.Characteristics
- Type: ICR506SL (Intercable R-series with inspection hole).
- Nominal cross-section: 50 mm².
- Screw thread: M6.
- Inspection hole for visual check of inserted conductor.
- Documented on Intercable Tools product list.
Typical Applications
- Used for visual verification of the inserted conductor through the inspection hole before assembly.
- Designed for fastening with M6 screw for conductors with a nominal cross-section of 50 mm².
Dimensions and Packaging
- Dimensions (stated in manufacturer's table): d1 = 10 mm, d3 = 14 mm, D2 = 6 mm, B = 20 mm, L = 37 mm, A = 19 mm.
- Net weight: 3.02 kg per 100 pcs.
- Packaging quantity: 25 pcs per pack.
Compatible Conductor Types
- The R-series with inspection hole is stated in the manufacturer's text as suitable for multi-stranded, fine-stranded, distributed multi-stranded, and solid round or sector conductors (as specified by Intercable Tools).
The product and its dimensions are documented on Intercable Tools' product list for the R-series with inspection hole. For details and the original product table, see the manufacturer's page: Product details at Intercable Tools.
Specifications
- Manufacturer: WEITKOWITZ (stated in input).
- Product name / type number: ICR506SL.
- Nominal cross-section: 50 mm².
- Connection thread size (metric): M6.
- Dimensions: d1 = 10 mm; d3 = 14 mm; D2 = 6 mm; B = 20 mm; L = 37 mm; A = 19 mm.
- Net weight: 3.02 kg per 100 pcs.
- Packaging quantity: 25 pcs per pack.
- Compatible conductor types: multi-stranded, fine-stranded, distributed multi-stranded, and solid round or sector conductors (according to Intercable Tools).
