Product Overview
This cable gland from SIB is the SIB-TEC cable gland F8001300. The product is specified as a cable gland made of polyamide and is rated for PG 13 thread in accordance with GUIDE UTE 68310 – GUIDE UTE 68311. The description below is based on the manufacturer's specifications and available datasheet.Material and Sealing
- Construction: Polyamide 6 V2 (specified by the manufacturer).
- Sealing material: Neoprene.
- Color delivery: RAL 9005 (black).
Functional Properties
- Thread type: PG 13 (in accordance with GUIDE UTE 68310 – GUIDE UTE 68311).
- Clamping range: 5.0 mm to 12.0 mm.
- Protection class: IP68 (specified by the manufacturer).
- Certified operating temperature: -40 °C to +100 °C.
Documentation

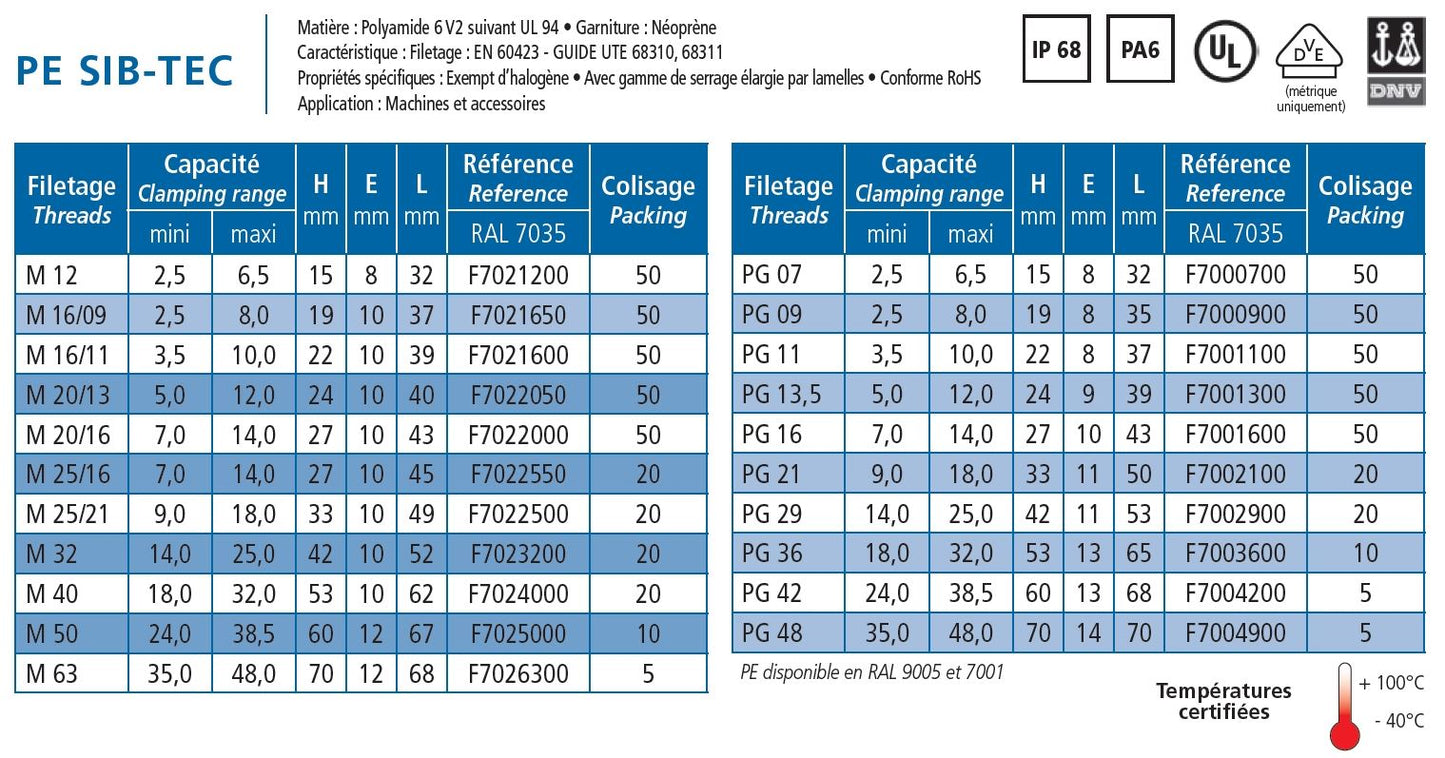

The information has been verified through the manufacturer's datasheet. For technical details and dimension drawings, please refer to the manufacturer's documentation: View datasheet from the manufacturer.Specifications
- Product name: SIB-TEC cable gland F8001300
- Manufacturer: SIB
- Material: Polyamide 6 V2
- Sealing: Neoprene
- Thread type: PG 13 (GUIDE UTE 68310 – GUIDE UTE 68311)
- Clamping range: 5.0–12.0 mm
- Protection class: IP68
- Color: RAL 9005 (black)
- Operating temperature: -40 °C to +100 °C
Content generated using AI – subject to errors.
Contact HIN for further product information.
