cable gland M63 black polyamid cable Ø35-48mm

Product Overview

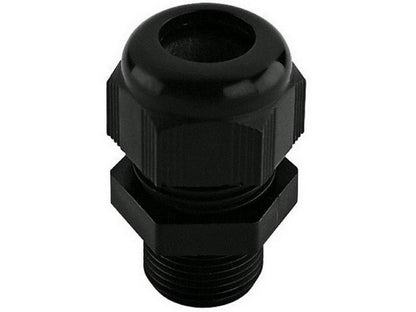

This SIB cable gland is listed under the manufacturer reference F8026300 and is a SIB-TEC plastic cable gland. F8026300 is manufactured in black (RAL 9005) and is designed as a metric M63 (EN 60423) threaded connection with a neoprene sealing element.

Materials and Sealing

• Housing: Polyamide 6 V2 (according to UL 94) as per manufacturer specification
• Sealing insert: Neoprene

Protection Rating and Mounting

• Protection class: IP68 (specified in manufacturer documentation)
• Thread: M63 (EN 60423) as a metric connection

Documentation

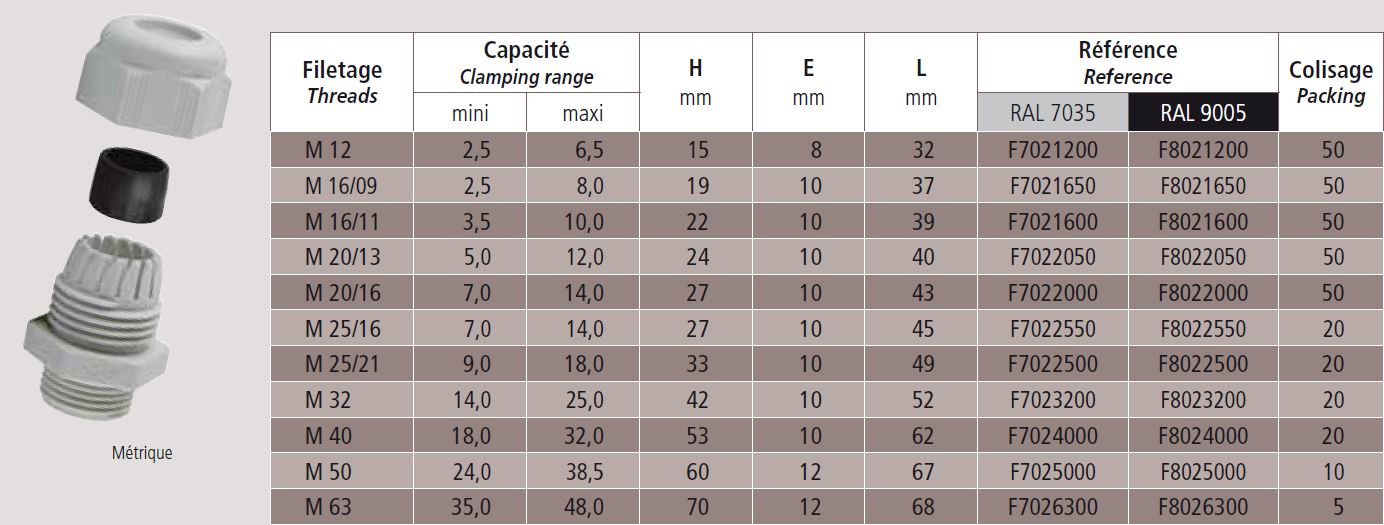

Further technical information and dimensions can be found in the manufacturer's datasheet. View manufacturer datasheet

Specifications

• Manufacturer: SIB
• Manufacturer reference name: F8026300
• Product type: SIB-TEC plastic cable gland
• Colour: Black (RAL 9005)
• Material (housing): Polyamide 6 V2 according to UL 94
• Seal: Neoprene sealing insert
• Thread size: M63 (EN 60423)
• Clamping range: 35.0 mm – 48.0 mm
• Protection class: IP68
• Temperature range (application): -40 °C to +100 °C
• Packaging quantity: 5 pcs. per pack

Source: information and dimensions verified in the manufacturer's technical documentation for the SIB-TEC series F (see datasheet).
