Product Overview

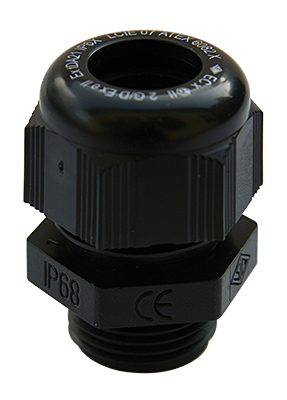

This cable gland from SIB, Cable gland SIB-TEC M40 (F8024000), is a metric cable gland made of polyamide (PA6). The product is specified as black and includes a neoprene gasket. The thread complies with EN 60423 (M40). Documentation from the manufacturer confirms an IP68 rating and indicates a clamping range of 18.0–32.0 mm.Material and Construction
- Housing: polyamide (PA6)
- Sealing ring: neoprene
- Colour: black
- Applies to metric thread size M40 (EN 60423)
Documentation

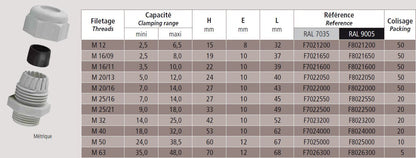

Manufacturer documentation with technical data and dimensions is available in SIB's datasheet: View datasheet from manufacturer
Specifications
- Product name: Cable gland SIB-TEC M40
- Manufacturer: SIB
- Manufacturer number: F8024000
- Material: Polyamide (PA6)
- Gasket type: Neoprene
- Clamping range (min/max): 18.0 mm – 32.0 mm
- Thread / standard: EN 60423 (M40)
- IP rating: IP68
- Continuous operating temperature: -40°C to +100°C
- Halogen-free: Stated as halogen-free
- Packaging quantity: 20 pcs.
- Weight (listed in manufacturer table for M40): 61.2 g
The content is AI-generated – we reserve the right for errors.
Contact HIN for further information about the product.
