Product Overview

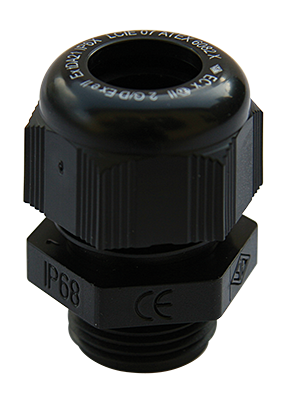

This cable gland from SIB-TEC, model F8023200, is a plastic cable gland designed for cable entry and sealing. The F8023200 is available in black and is specified in the manufacturer's metric catalog.Materials and Construction
- Body and cap material: polyamide 6 (PA6)
- Sealing ring: neoprene
- Colour: black (specified in the manufacturer's catalog)
Sealing and Environment
- Ingress Protection: IP68 (specified in the catalog)
- Continuous operating temperature range: −40°C to +100°C (specified in the catalog)
Dimensions and Mechanical Data
- Thread size: metric M32 (specified as M 32 in the manufacturer's table)
- Cable clamping range: 14.0–25.0 mm
- Stated weight in catalog table for the M32 variant: 34.1 g (specified in the manufacturer's table)
Documentation
Technical documentation and dimension table are available in the SIB-TEC catalog. See datasheet from the manufacturer
Typical Applications
Specifications
- Manufacturer: SIB
- Manufacturer reference / item number: F8023200
- Product category: plastic cable entry / cable gland
- Material, body/cover: Polyamide 6 (PA6)
- Sealing ring: Neoprene
- Thread size: M32
- Cable clamping range: 14.0–25.0 mm
- Protection degree: IP68
- Temperature, continuous use: −40°C to +100°C
- Weight (M32 variant specified in catalog): 34.1 g
- Source: SIB-TEC metric catalog (see datasheet link in documentation section)
