Product Overview
This is a plastic cable gland from SIB identified as F8022000. The product is designed as a cable gland with M20 thread (specified as M20/16) and comes in black (RAL 9005). The F8022000 consists of a polyamide 6 V2 (UL 94) housing and a neoprene sealing gasket.
Material and Sealing
- Body Material: Polyamide 6 V2 (UL 94)
- Sealing: Neoprene
- Colour: Black (RAL 9005)
Protection and Temperature
- IP Rating: IP68
- Continuous Operating Temperature: -40°C to +100°C
Typical Applications
The F8022000 is used for cable entry where clamping and sealing of single cables is necessary. The product is designed to secure cables within a specified clamping range while providing ingress protection in accordance with IP68.

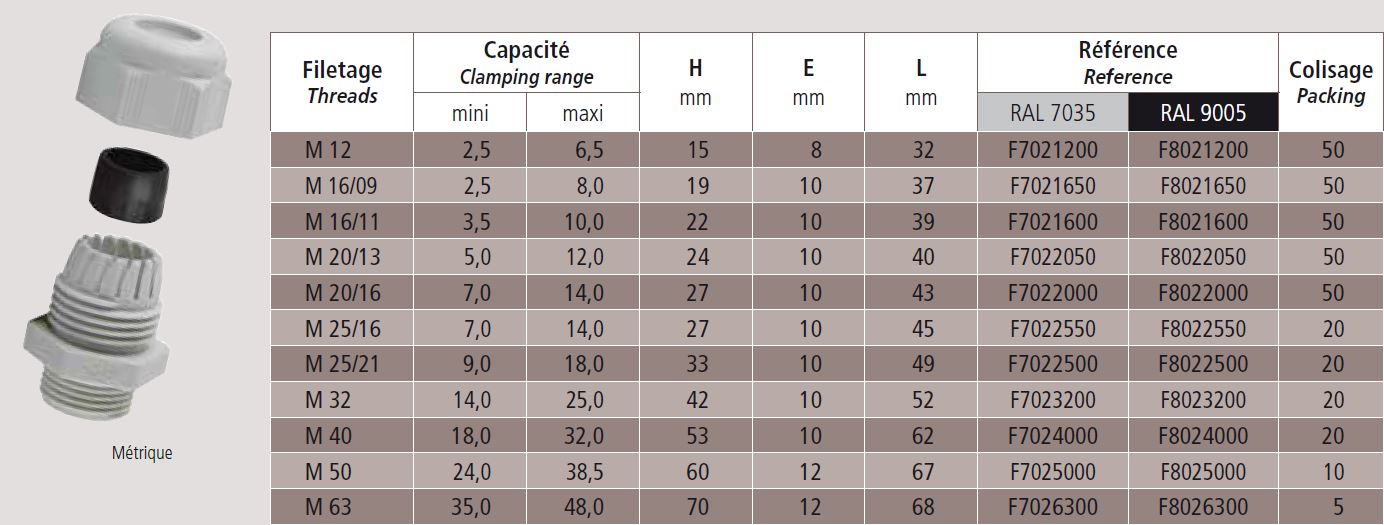

Technical Details
- Thread Size: M20 (M20/16)
- Clamping Range (cable diameter): 7.0–14.0 mm
- Packaging Size: 50 pcs. per package
For official dimensions and further technical data, please refer to the manufacturer's documentation.
See datasheet from the manufacturer
Specifications
- Product Name: F8022000
- Manufacturer: SIB
- Type: Plastic cable gland
- Material: Polyamide 6 V2 (UL 94)
- Sealing: Neoprene
- Thread: M20 (M20/16)
- Clamping Range: 7.0–14.0 mm
- IP Rating: IP68
- Temperature Range (continuous): -40°C to +100°C
- Colour: Black (RAL 9005)
- Packing: 50 pcs.
Source: Manufacturer's datasheet
