Product Overview

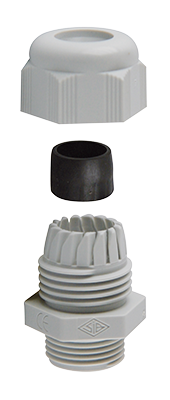

The SIB-TEC PG07 is a cable gland from SIB (article number F7000700). The product is specified as a PG07 gland made of polyamide 6 (PA6 V2) with a neoprene gasket and is designed for cable clamping in the range of 2.5–6.5 mm. The SIB-TEC PG07 is rated with an IP68 ingress protection and a certified temperature operating range from -40 °C to +100 °C. The color is specified as RAL 7035 (grey) and it comes in packaging of 50 pieces.Material and Sealing Solution
- Housing and nut: polyamide 6 (PA6 V2)
- Seal: neoprene
- Material property: halogen-free (stated)
Sealing and Environmental Parameters
- Protection class: IP68 (stated)
- Temperature range: -40 °C to +100 °C (stated as continuous operating temperature)
Documentation and dimension tables for the SIB-TEC PG07 can be found in the manufacturer's datasheet. See datasheet from manufacturer
Specifications
- Product name: SIB-TEC PG07
- Manufacturer: SIB
- Product number: F7000700
- Thread size/entry: PG07
- Clamping/cable diameter: 2.5–6.5 mm
- Material (housing and nut): Polyamide 6 (PA6 V2)
- Seal: Neoprene
- Protection class: IP68
- Continuous operating temperature: -40 °C to +100 °C
- Material information: Halogen-free
- Color: RAL 7035 (grey)
- Packaging: 50 pieces
- Weight (stated in manufacturer's table for PG07): 3.3 g
The content has been generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
