Product Overview
This SIB-TEC plastic cable gland, manufacturer reference F7001100, is a PG11 cable gland designed for sealing cables when routed through enclosures or panels. The F7001100 is specified by the manufacturer SIB and details material, sealing properties, and electrical/environmental classification in the manufacturer's technical documentation.Materials and Properties
- Body Material: Polyamide 6 V2 (UL 94)
- Seal Material: Neoprene
- Thread Type: PG11 (external thread)
- Protection Class: IP68
- Standard Colour: RAL 7035 (grey)
Typical Applications
The F7001100 is specified by the manufacturer for use in machinery and apparatus. The description in the manufacturer's catalogue explicitly mentions this application, thereby indicating the product's primary area of use as cable entry in machinery and apparatus contexts.Documentation

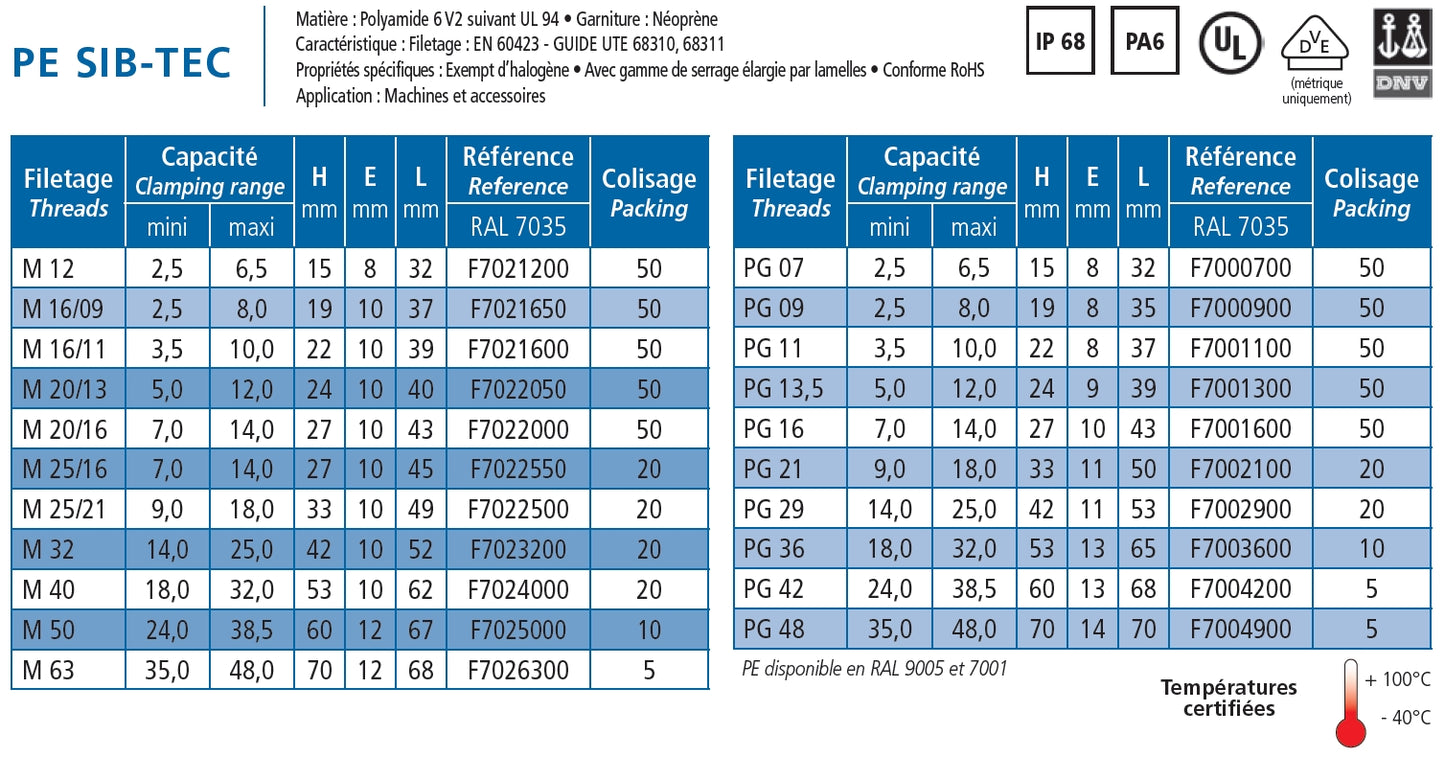

Technical documentation is available from the manufacturer and refers to the F7001100 in the SIB-TEC PG catalogue: See datasheet from manufacturerSpecifications
- Manufacturer: SIB
- Manufacturer Reference: F7001100
- Product Category: Plastic Cable Gland (PG11)
- Cable Clamping Range: 3.5 mm – 10.0 mm
- Body Material: Polyamide 6 V2 (UL 94)
- Seal: Neoprene
- IP Rating: IP68
- Approved Temperature Range: -40°C to +100°C
- Standard Colour: RAL 7035 (grey)
- Dimensions (as stated in manufacturer catalogue): H = 22 mm, E = 8 mm, L = 37 mm
- Packaging: 50 pcs. (according to manufacturer catalogue)
- Manufacturer Features: Halogen-free; extended clamping range via lamellae; RoHS compliant; thread according to GUIDE UTE 68310/68311
The content is AI-generated – we reserve the right for errors.
Contact HIN for further product information.
