Product Overview

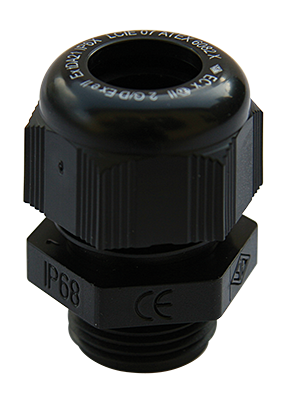

This cable gland from SIB, SIB-TEC Ex e (reference number F8021650E), is an Ex e cable gland with M16 thread. The product is made of polyamide (Polyamide 66) with a neoprene flat gasket and has colour code RAL 9005 (black). The SIB-TEC Ex e cable gland accepts cable diameters from 5.0 mm to 8.0 mm and is rated IP68. The certified operating temperature is stated as -35°C to +95°C.Technical Description
The construction is based on a polyamide housing with a flat neoprene gasket. The manufacturer's technical documentation also specifies protection classes IP66 and IP68 in combination with thread sealing and notes that the installation of thread sealing is mandatory for use in dust zones 21 & 22. The documentation also contains certification information and references to relevant standards.Typical Applications
This SIB-TEC Ex e cable gland (F8021650E) is used for:- passing cables through walls in metal or plastic enclosures
- ensuring sealing around the cable at the entry point
Documentation
See manufacturer's datasheetSpecifications
- Product: SIB-TEC Ex e cable gland, reference F8021650E
- Thread: M16
- Material: Polyamide (Polyamide 66)
- Sealing ring: Neoprene flat gasket
- Colour: RAL 9005 (black)
- Cable diameter: 5.0 mm – 8.0 mm
- Protection class: IP68 (manufacturer documentation also specifies IP66 & IP68 with thread sealing)
- Certified operating temperature: -35°C to +95°C
- Certifications and markings according to manufacturer's documentation: LCIE 07 ATEX 6082 X; LCI 10.0008 X (IECE); BR 230661-X (INMETRO); RU C-FR.ГБ05.B.00955 (TR CU EX)
- Function: Cable gland for sealing cable penetrations in enclosures
- Requirements: Installation of thread sealing for use in dust zones 21 & 22; use of a fastening/clamping device is recommended close to the entry point
