Product Overview

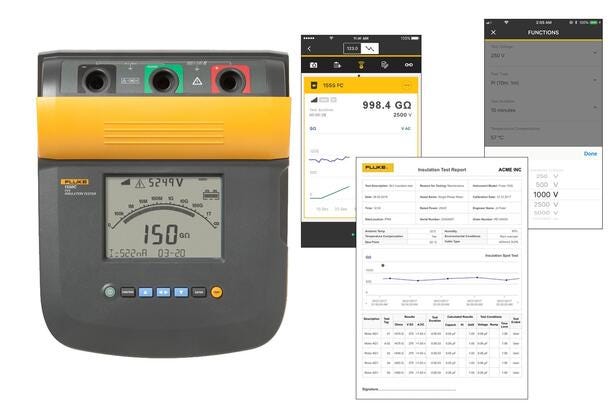

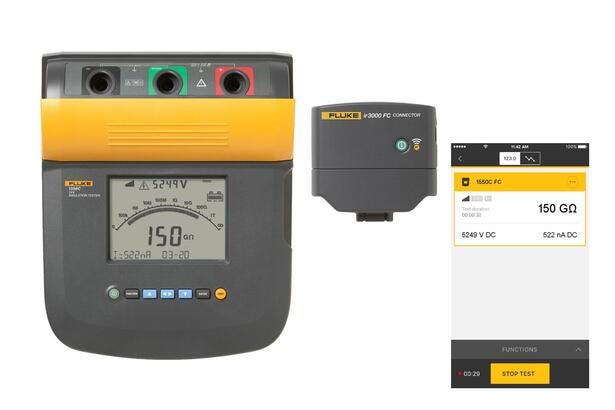

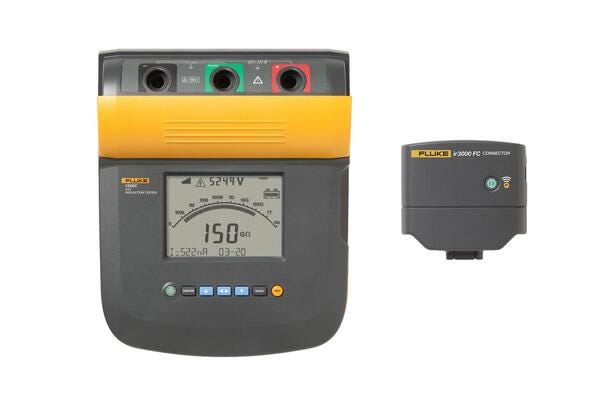

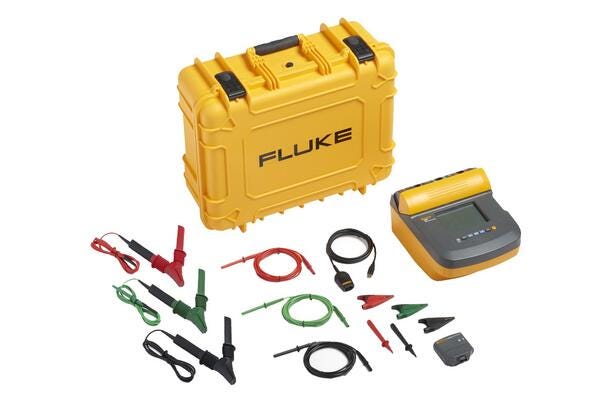

This digitally isolated insulation resistance test kit from Fluke, the Fluke 1550C FC 5 kV Insulation Tester Kit (Part#: 3665127), is an insulation resistance tester for measurements up to 5 kV DC. The instrument's primary function is digital insulation measurement with data transfer and storage capabilities via Fluke Connect (compatibility indicated by the manufacturer).Kit Contents
- Test leads with alligator clips (red, black, green)
- Infrared adapter with interface cable
- AC power cord
- IP67 hard case
- Calibration certificate (included in kit)
- User manual on CD-ROM and quick reference guide
- USB-IR cable installation guide
- Heavy-duty alligator clamps (included in kit and in 1555/kit)
Documentation
Manufacturer's technical specifications and manuals are available in PDF format. View manufacturer's datasheet
Typical Applications
The Fluke 1550C FC 5 kV Insulation Tester Kit is used for insulation measurements on high-voltage equipment, including measurements on:
- Switchgear
- Motors
- Generators
- Cables
Technical Features
- Selection of test voltages up to 5 kV DC (1550C)
- Selectable test voltages in 50 V steps from 250 V to 1000 V and in 100 V steps above 1000 V
- Historical storage and trend analysis via Fluke Connect
- Guard system to reduce surface leakage currents in high resistance measurements
- Built-in warning for the presence of line voltage up to 600 V AC/DC
Specifications
- Model/part number: Fluke 1550C FC 5 kV Insulation Tester Kit (Part#: 3665127)
- Measurement range: Insulation test up to 5 kV DC
- Resistance measurement: up to 1 TΩ (specified for 1550C)
- Leakage current measurement: 1 nA to 2 mA
- Capacitance measurement: 0.01 µF to 15.00 µF
- Measurement time setting: 0 to 99 minutes
- Safety categories: CAT IV 600 V and CAT III 1000 V
- Unit enclosure rating: IP40 (instrument); kit supplied in IP67 hard case
- Power: 12 V lead-acid rechargeable battery (Yuasa NP2.8-12) and charger 85–250 V AC
- Dimensions: 269 mm x 277 mm x 160 mm
- Weight: 3.7 kg
- Operating temperature: -20 °C to 50 °C
- Warranty: 3 years (stated by manufacturer)
- Compatibility: Fluke Connect compatible
