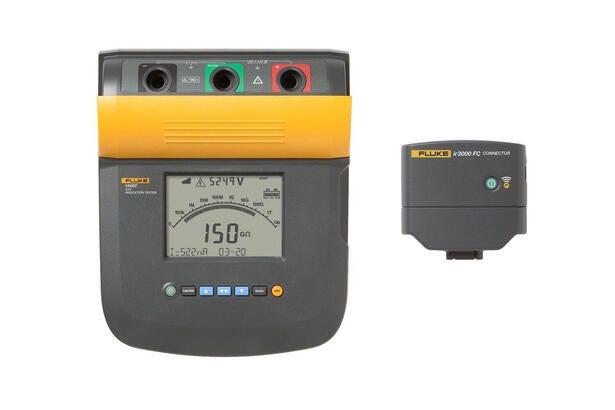

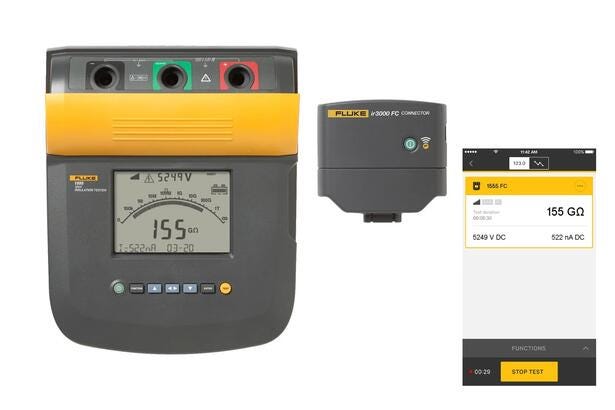

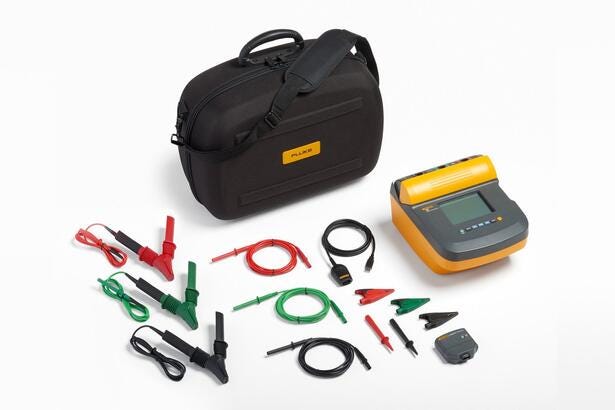

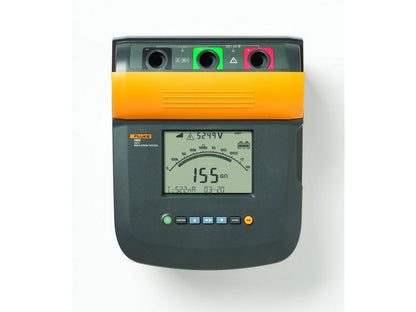

Fluke 1555 Insulation Tester
The Fluke 1555 is a measuring instrument for insulation testing of high-voltage equipment. It is used to assess whether the insulation in, for example, switchboards, motors, generators, and cables is still functioning as it should. This type of test is precisely what is used in troubleshooting, commissioning, and preventive maintenance, where the aim is to detect developing problems before they turn into operational downtime.
The instrument can perform DC insulation measurements up to 10 kV, making it suitable for tasks where ordinary low-voltage testers are insufficient. The test voltage can be selected in steps, allowing the measurement to be adapted to the task. This is practical when working with different installations and wanting to use the voltage appropriate for the component.
Additionally, it measures insulation resistance up to 2 TΩ. This means it can also be used when working with very high resistance values, where a clear picture of the insulation's condition is needed. The Guard function helps when surface current can disturb the measurement by reducing the influence of leakage current along the surface.

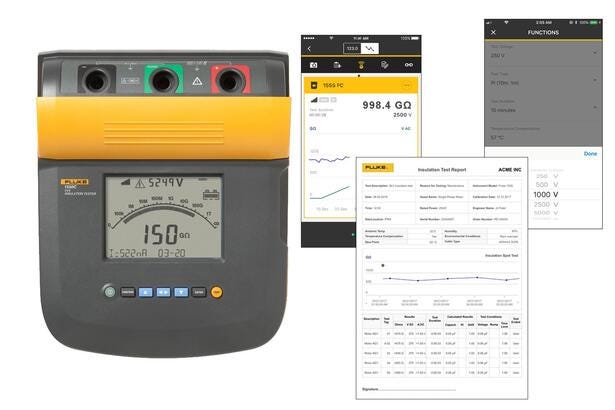

The Fluke 1555 also has the ability to save measurements in up to 99 memory locations. This makes it easier to track developments over time and compare results from multiple measurements. For a service technician or maintenance department, this is often as important as the measurement itself.
With CAT IV 600 V, this is an instrument designed for work in demanding electrical environments where the safety level must be in place. It is therefore a relevant choice when the task involves insulation testing on larger installations and high-voltage equipment.
See datasheet from the manufacturer
Specifications
- Insulation resistance tester for high-voltage equipment
- DC insulation testing up to 10 kV
- Testing of switchboards, motors, generators, and cables, among others
- Test voltages in steps from 250 V to 1000 V and further above 1000 V
- Insulation resistance up to 2 TΩ
- Guard system, which reduces the influence of surface leakage
- Can store measurements in up to 99 memory locations
- CAT IV 600 V safety rating
