STAUBLI 18.3010

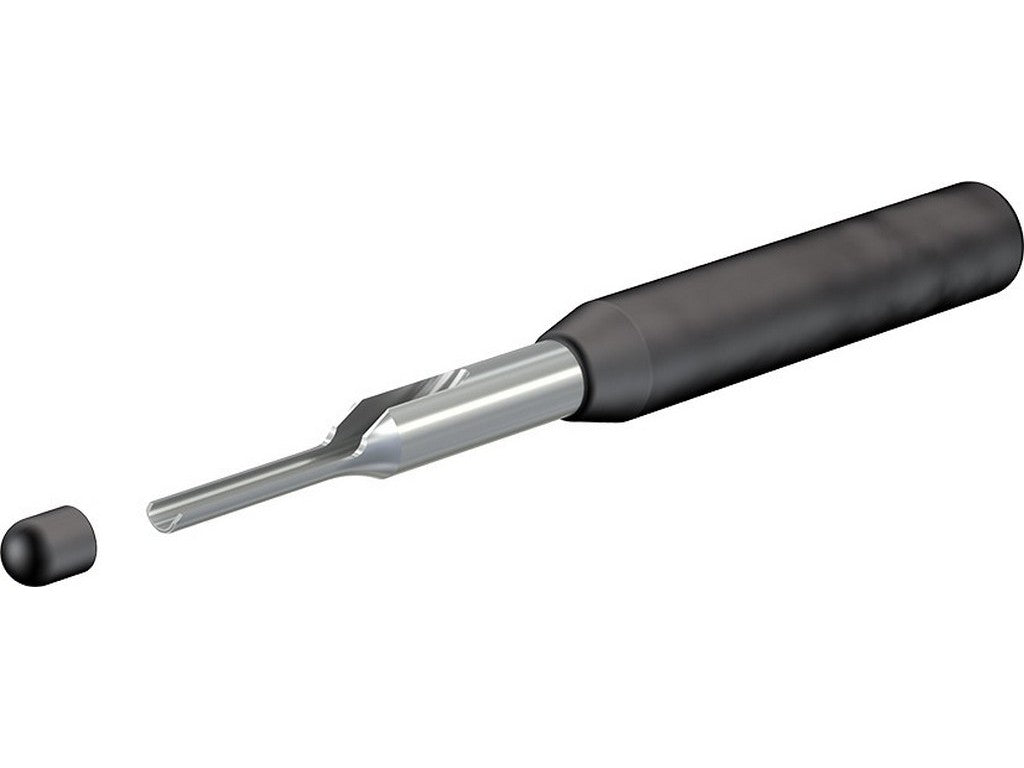

The STAUBLI 18.3010 is an insertion tool for pin and socket contacts with a nominal contact diameter of 3 mm. It is used when contacts need to be correctly mounted into Stäubli multi-coupling inserts, allowing for more precise work with the small contact parts included in both thermocouple contacts and multi-coupling solutions.
In practice, it serves as an assembly aid, making the insertion of contacts more controlled. When working with pin/socket contacts, the goal is to position the contact parts without subjecting them to unnecessary stress. Therefore, a tool like this is included as part of Stäubli's comprehensive assembly instructions and product documentation.
The tool is referred to by Stäubli under the type ME-WZ3 and is linked to order no. 18.3010 in the documentation. This means it can be used as the correct spare part or assembly aid when working according to Stäubli's instructions.
See datasheet from the manufacturer
Typical applications
- Mounting of pin and socket contacts
- Working with thermocouple contacts
- Assembly of multi-coupling inserts
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3010
- Type: ME-WZ3
- Function: insertion tool for pin/socket
- Nominal contact diameter: 3 mm
- Used in Stäubli assembly instructions and product documentation
