STAUBLI WKZ16BV-NS-A

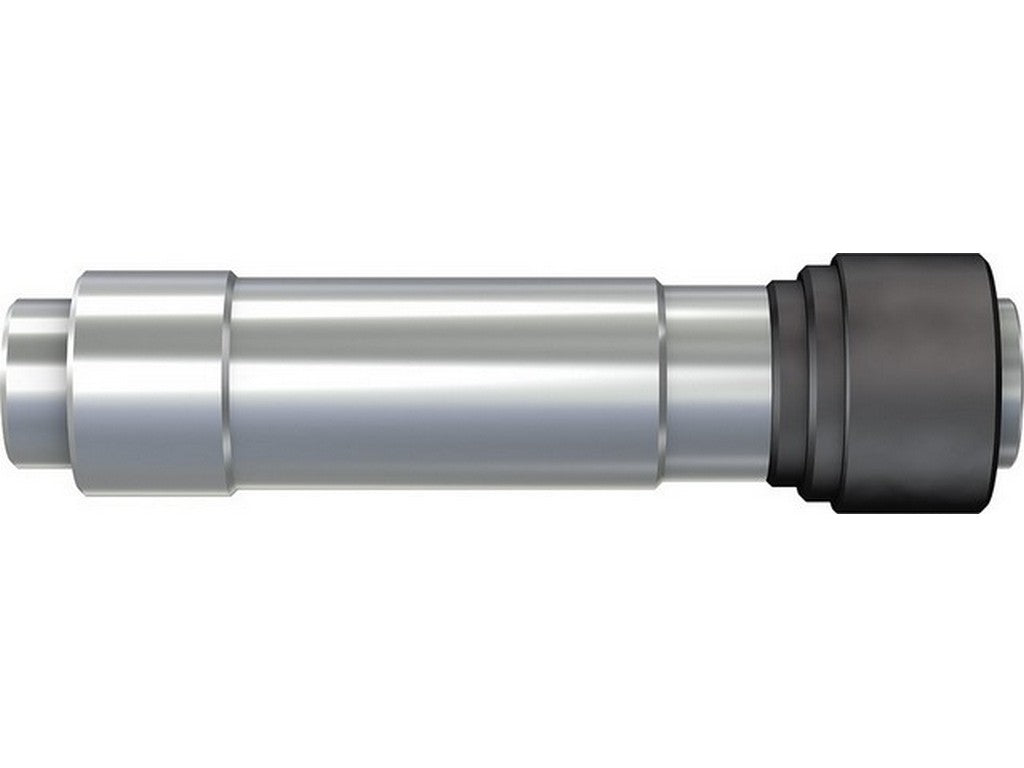

The STAUBLI WKZ16BV-NS-A is an assembly and disassembly tool for Stäubli 16BV circular connector contact inserts. It is used when the metal parts within the contact inserts need to be pressed out of the insulation and reinserted during replacement or servicing.
The tool is designed for KBT16BV-AX/M and KST16BV-AX/M contact inserts, as well as their NS variants. It covers all insulation sizes, allowing the same tool to be used in tasks where the contact insert needs to be correctly disassembled and reassembled.
In practice, it serves as a spare parts and service aid for working with Stäubli 16BV connections. When crimp sleeves in coupling parts need to be replaced, the metal parts must first be pressed out of the insulation, which is precisely the task the WKZ16BV-NS-A is designed for. Stäubli also refers to the tool in assembly instruction MA064, which describes the assembly and disassembly of contact inserts.
See datasheet from the manufacturerTypical applications
- Disassembly of 16BV contact inserts
- Assembly of 16BV contact inserts
- Replacement of crimp sleeves in coupling parts
- Service on KBT16BV-AX/M and KST16BV-AX/M, as well as NS variants
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0136
- Order number: 15.0136
- Product name: WKZ16BV-NS-A
- Type: installation and extraction tool
- For Stäubli 16BV circular connector contact inserts
- Compatible with KBT16BV-AX/M and KST16BV-AX/M
- Compatible with NS variants
- Suitable for all insulation sizes
- Used for dismantling and installation of metal parts
- Documented in Stäubli assembly instruction MA064
