Product Overview

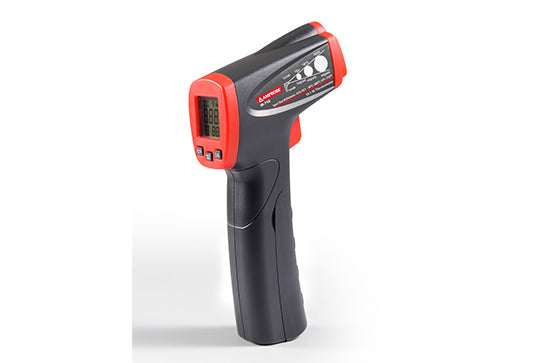

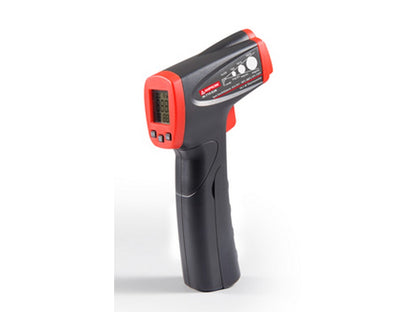

This infrared thermometer from Amprobe is the Amprobe IR-710. The device is a spot measurement infrared thermometer with a distance-to-spot ratio of 10:1 and a temperature range from -18 °C to 380 °C (0 °F to 716 °F). The instrument comes with a preset emissivity of 0.95, a laser pointer, a backlit dual LCD display, and MAX/MIN memory functions.Documentation
The referenced manufacturer documentation contains additional details and technical tables. See manufacturer datasheetTypical Applications
- Used for control and inspection in HVAC/R applications.

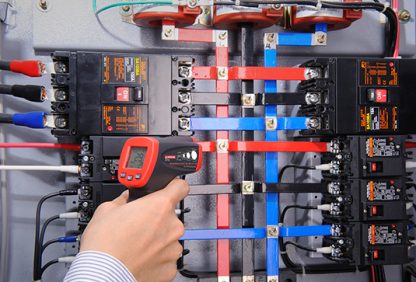

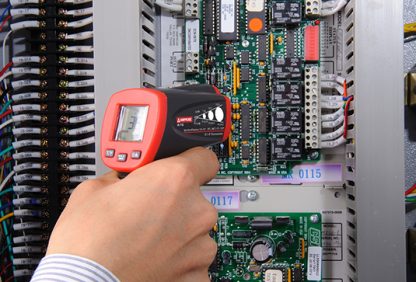

- Applied for temperature verification of electrical components and installations.
- Suitable for maintenance and troubleshooting checks in industrial maintenance tasks.
- Well-suited for temperature measurement in automotive applications.
- Used for control tasks in quality control and fire prevention.
Features and Operation
The Amprobe IR-710 measures temperature by capturing emitted radiation and displaying the reading on a dual backlit LCD. The unit includes a laser pointer for precise targeting and has an 8-second automatic display hold. Temperature display can be selected in °C or °F. MAX and MIN functions store extreme readings as specified in the manufacturer documentation.Specifications
- Manufacturer: AMPROBE
- Model: Amprobe IR-710
- Manufacturer part number: 4308480
- Distance-to-spot (D:S): 10:1
- Temperature range: -18 °C to 380 °C (0 °F to 716 °F)
- Preset emissivity: 0.95
- Laser pointer: Yes (single point laser)
- Display: Dual LCD with backlight
- DATA functions: MAX/MIN memory
- Display hold: 8 seconds
- Response time (95%): 500 ms
- Spectral response: 8 µm – 14 µm
- Minimum spot size: 20 mm
- Power supply: 9V 6F22 alkaline batteries or external power supply according to manufacturer datasheet
- Dimensions (approx.): 169 x 138 x 53 mm
- Weight (approx.): 290 g with battery
- Source: Manufacturer's datasheet
Content generated using AI – subject to errors.
Contact HIN for further information about the product.
