Gedore socket 3/8 1000V insulated SW20mm w/internal hexagon

Product Description

This VDE socket wrench insert 3/8" 6-point 20 mm (VDE 30 20, 2946513) is an insulated socket wrench insert as specified by the manufacturer GEDORE. The product's identity and core function are directly evident from the manufacturer's product information: a 6-point 3/8" (10.0 mm) square drive connector with a 20 mm width across flats.

Material and Construction

• Material: Chrome-vanadium steel, specified as 31CrV3.
• Surface/Insulation: Two-layer Check-Tool insulation ("2-fold Check-Tool insulation").
• Insulation overhang: 16–18 mm insulation overhang is specified.

Safety and Standards

• Protective insulation up to 1000 V according to EN 60900 / IEC 60900, as stated on the manufacturer's product page.
• Product references to standards: ISO 1174 and DIN 3120 (specified by the manufacturer).

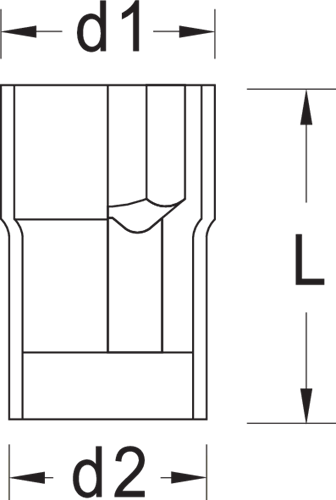

Physical Measurements

• Drive mount (square): 10.0 mm (3/8").
• Width across flats: 20 mm.
• Working length: 47.0 mm.
• Total width: 31.2 mm.
• Total length: 47 mm.
• Weight: 0.085 kg.

Note: The information in this text is based solely on the manufacturer's product information for the VDE socket wrench insert 3/8" 6-point 20 mm (VDE 30 20, 2946513). No additional features or applications have been added or assumed.

Specifications

• Product name: VDE socket wrench insert 3/8" 6-point 20 mm (VDE 30 20, 2946513).
• Manufacturer: GEDORE.
• Material: Chrome-vanadium steel 31CrV3.
• Drive connector (square): 10.0 mm (3/8").
• Width across flats: 20 mm.
• Working length: 47.0 mm.
• Total width: 31.2 mm.
• Total length: 47 mm.
• Weight: 0.085 kg.
• Insulation: 2-fold Check-Tool insulation, insulated up to 1000 V (EN 60900 / IEC 60900).
• Insulation overhang: 16–18 mm.
• Standard references: ISO 1174, DIN 3120.
