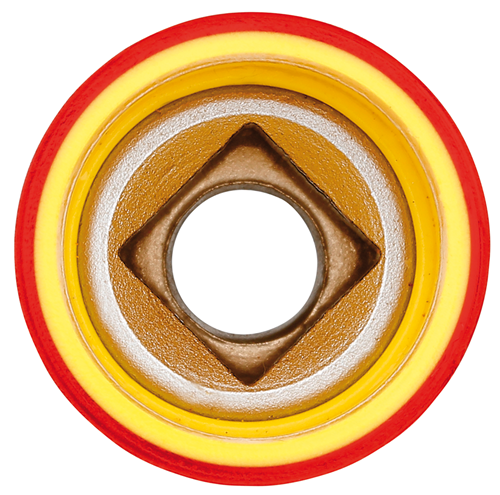

Gedore socket 3/8 1000V insulated SW19mm w/internal hexagon

Product Overview

The VDE 30 19 is a VDE socket insert with a 3/8" square drive and a hexagonal (6-point) profile with a 19 mm wrench size across flats. The product is identified by GEDORE as article number 2946505 and is specified directly on the manufacturer's product page.

Construction and Insulation

• Material: GEDORE vanadium steel 31CrV3 (chrome-vanadium steel).
• Internal square drive in accordance with DIN 3120 - C 10 and ISO 1174.
• Protective insulation: insulated up to 1000 V according to EN 60900/IEC 60900.
• Insulation details: 2-fold Check-Tool insulation and an insulation overhang of 16–18 mm.

Dimensions and Weight

• Width across flats: 19 mm.
• Working length: 46.0 mm (working length indicated on the product page).
• Total width: 30 mm.
• Net weight: 0.075 kg.

The information above is sourced from GEDORE's official product page for VDE 30 19 (article number 2946505). These specifications originate from the manufacturer's technical product setup and standards described on the product page.

Specifications

• Product name: VDE 30 19 (GEDORE code 2946505).
• Manufacturer: GEDORE.
• Drive connector square (inch): 3/8".
• Drive mount, square (mm): 10.0 mm.
• Width across flats: 19 mm.
• Material: Chrome-vanadium steel 31CrV3.
• Standards: DIN 3120 - C 10; ISO 1174; EN 60900/IEC 60900 (insulation up to 1000 V).
• Insulation: 2-fold Check-Tool insulation, insulation overhang 16–18 mm.
• Working length: 46.0 mm.
• Total width: 30 mm.
• Weight: 0.075 kg.
• EAN: 4010886947531.
