Product Overview

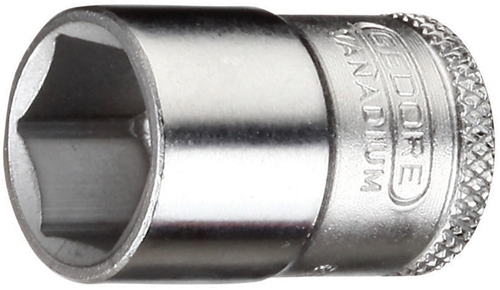

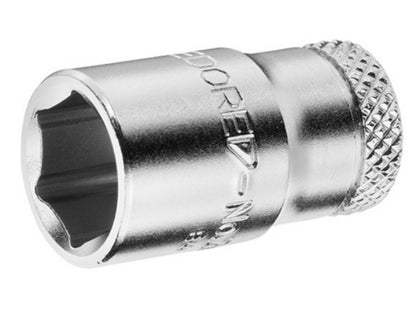

This GEDORE socket, Socket 3/8" hex 7 mm (30 7), is a manually operated 3/8" square drive socket for hexagonal nuts/bolts. The product is identified by item number 6230240 and is manufactured from GEDORE vanadium steel 31CrV3 with a polished and chrome-plated surface.Construction and Standards
- Square drive: 3/8" (conforms to DIN 3120 - C 10 and ISO 1174) with ball retention groove.
- Material: GEDORE vanadium steel 31CrV3, polished and chrome-plated.
- Manual application with non-slip cross knurling.
- Conforms to standards DIN 3124 and ISO 2725-1 for sockets.

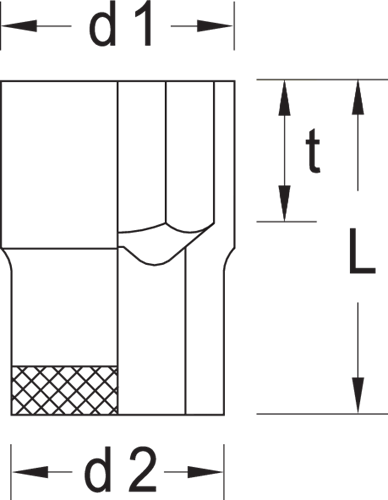

Dimensions and Mechanical Details
- Dimension across flats (width): 7 mm (width across flats).
- Overall width/height: 18 mm.
- Overall length / working length: 28.0 mm (total length / working length).
- Operating depth: 5.0 mm.
- Drive mount, square (metric): 10.0 mm.
- Insert-Ø1: 11.0 mm; Insert-Ø2: 17.5 mm.
- Weight: 0.024 kg.
Functional Details
- Socket 3/8" hex 7 mm (30 7) is equipped with a ball retention groove for secure attachment to ratchet/drive.
- Designed for manual use; surface treatment and knurling specified for handling/control.
Sources
Specifications
- Product name: Socket 3/8" hex 7 mm (30 7)
- Item number: 6230240
- Square drive: 3/8" (DIN 3120 - C 10, ISO 1174)
- Standards: DIN 3124, ISO 2725-1
- Material: GEDORE vanadium steel 31CrV3
- Surface: polished, chrome-plated
- Working/overall length: 28.0 mm
- Operating depth: 5.0 mm
- Overall width/height: 18 mm
- Width across flats: 7 mm
- Drive mount (metric): 10.0 mm
- Insert-Ø1: 11.0 mm; Insert-Ø2: 17.5 mm
- Weight: 0.024 kg
- Function: Manual application with non-slip cross knurling and ball retention groove
