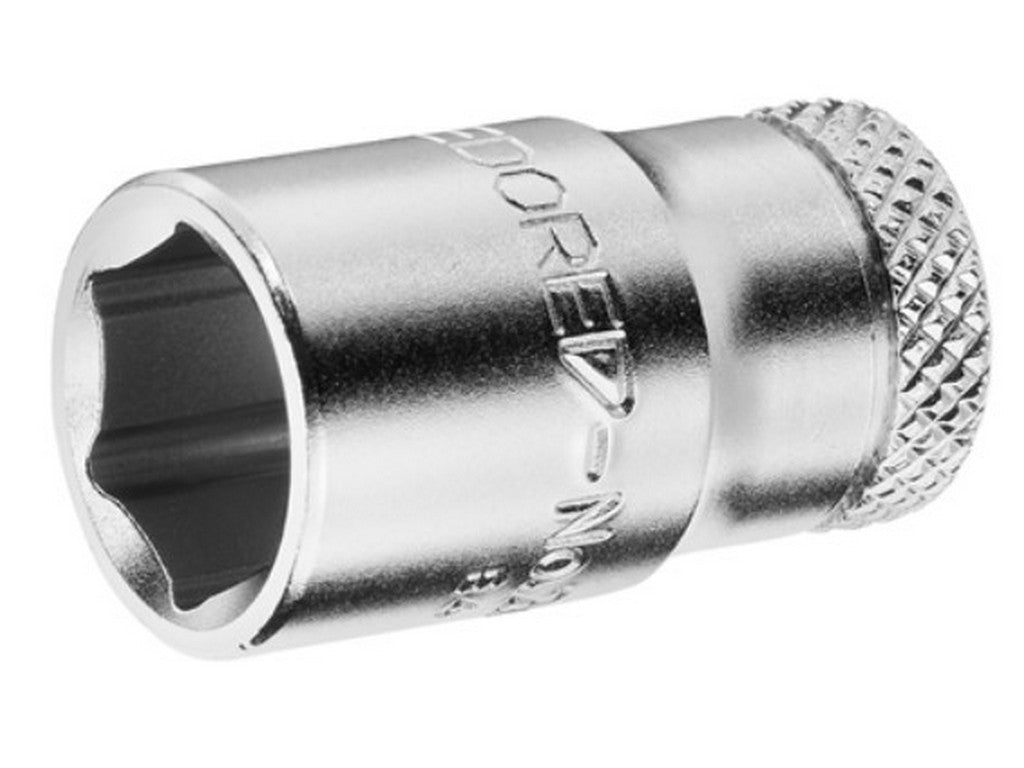

GEDORE 30 16 (6234310) — 3/8" drive 16 mm hexagon socket
This socket from GEDORE is listed as GEDORE 30 16 (code no. 6234310) and is clearly identified as a 3/8" drive, 16 mm hexagon socket. The text below describes the product's verified construction and dimensions in accordance with the manufacturer's product information.Construction and Function
The GEDORE 30 16 (6234310) is made of chrome-vanadium steel 31CrV3 with a polished, chrome-plated surface. The socket has a working length of 30.0 mm and an operating depth of 12.5 mm. The product is equipped with a ball retention groove and is supplied as a single unit (quantity: 1).
Material and Standards
- Material: Chrome-vanadium steel 31CrV3.
- Surface: Polished, chrome-plated.
- Standards: Stated as compliant with DIN 3124, ISO 2725-1 and DIN 3120 – C 10 / ISO 1174.
The information is based on the manufacturer's product description on GEDORE's product page.
Specifications
- Product Name: GEDORE 30 16 (code no. 6234310).
- Manufacturer: GEDORE.
- Type: 3/8" drive, 16 mm hexagon socket.
- Working length: 30.0 mm.
- Operating depth: 12.5 mm.
- Material: Chrome-vanadium steel 31CrV3.
- Surface: Polished, chrome-plated.
- Standards: DIN 3124; ISO 2725-1; DIN 3120 – C 10 / ISO 1174.
- Ball retention groove: Yes.
- Drive mount, square [metric]: 10.0 mm.
- Drive connector square [inch]: 3/8".
- Width across flats: 16 mm.
- Total length: 30 mm; total width: 22 mm; total height: 22 mm.
- Insert-Ø 1: 22.2 mm; Insert-Ø 2: 21.0 mm.
- Weight: 0.05 kg.
- EAN: 4010886623435.
- Quantity in delivery: 1 piece.
Source: Manufacturer's product description.
