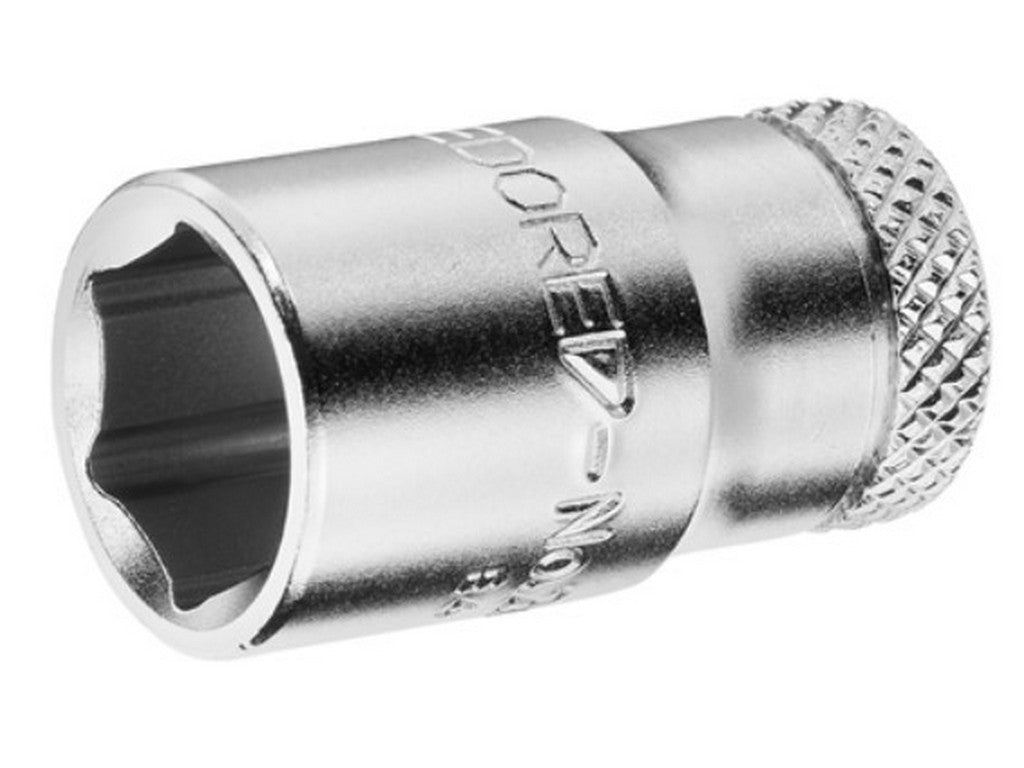

GEDORE 6233850 (30 11) — 3/8" 6-point socket (11 mm)
Product Overview
GEDORE 6233850 (30 11) is a 3/8" drive 6-point socket with an 11 mm across-flats dimension. The product is specified in accordance with DIN 3124 and ISO 2725-1 and features a square drive according to DIN 3120 - C 10 / ISO 1174. The socket is made of chrome-vanadium steel 31CrV3, polished and chrome-plated, and is designed for manual use with non-slip cross knurling. It includes a ball-retention groove for secure fitting on shafts/ratchets.Typical Applications
- Used for manual tightening and loosening of 11 mm hexagonal fasteners with a 3/8" square drive.
Technical Details
- Manufacturer: GEDORE
- Manufacturer number (Item no.): 6233850 (30 11)
- Drive: 3/8" (square drive 10.0 mm)
- Across flats: 11 mm
- Material: Chrome-vanadium steel 31CrV3
- Surface: Polished, chrome-plated
- Standards: DIN 3124, ISO 2725-1; square drive as DIN 3120 – C 10 / ISO 1174
- Ball-retention groove: Yes
- Manual use, non-slip cross knurling
- Total/working length: 28.0 mm
- Working depth: 9.0 mm
- Insertion-Ø 1: 16.0 mm; Insertion-Ø 2: 17.5 mm
- Weight: 0.02 kg
- EAN: 4010886623381
Documentation
For official product information and further details, please refer to the manufacturer's product page: Product information from the manufacturer.Specifications
- Item no.: 6233850 (30 11)
- Type: 3/8" 6-point socket, 11 mm
- Material: Chrome-vanadium steel 31CrV3
- Surface: Polished, chrome-plated
- Standards: DIN 3124; ISO 2725-1; DIN 3120 – C 10 / ISO 1174
- Total length: 28.0 mm
- Working depth: 9.0 mm
- Weight: 0.02 kg
- EAN: 4010886623381
