Product Overview

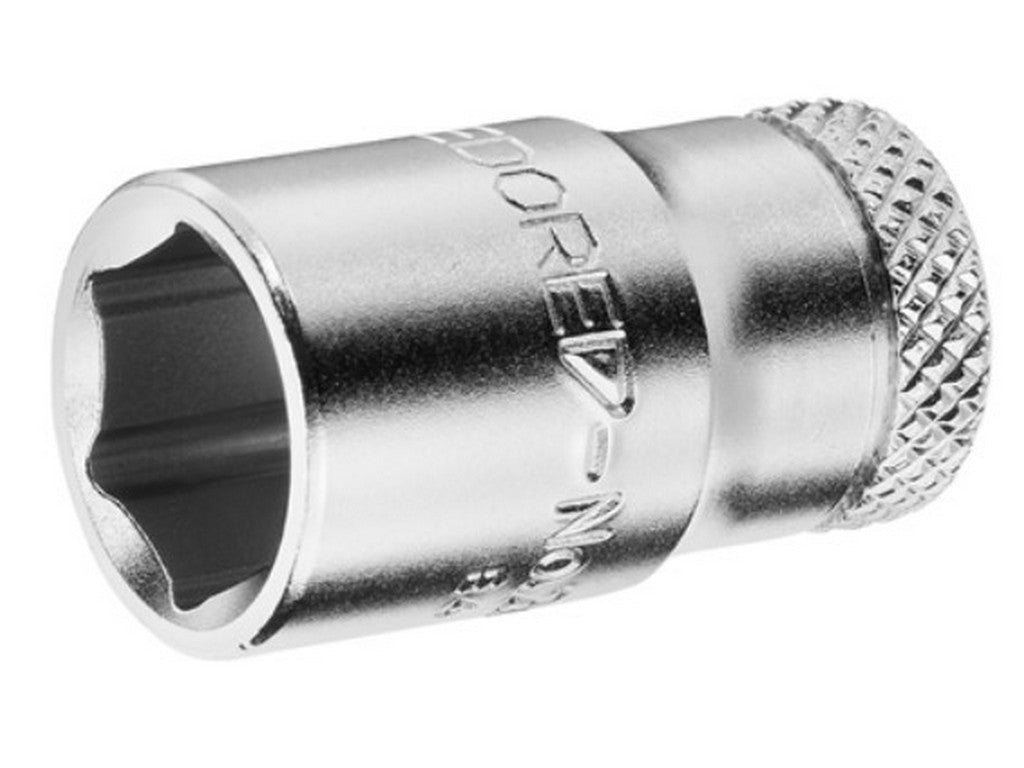

This 3/8" hex socket from GEDORE, GEDORE 30 10 (code 6230590), is a manual 3/8" hex socket with a 10 mm width across flats. The GEDORE 30 10 (6230590) is supplied as a single piece and is described by the manufacturer with standards and dimensions.Function and Design
- Drive: 3/8" square drive (drive connector square: 3/8").
- Width across flats: 10.0 mm.
- Material: Chrome-vanadium steel 31CrV3 (GEDORE vanadium steel 31CrV3), polished and chrome-plated surface (polished, chrome-plated).
- Design: Manual operation with non-slip cross knurling and ball retention groove.
- Stated standards: DIN 3124, ISO 2725-1; square drive according to DIN 3120 - C 10, ISO 1174.
Documentation
See the manufacturer's product page for the registered product text and stated technical data: See manufacturer's product page.Specifications
- Product name: GEDORE 30 10 (code 6230590).
- Type: Socket 3/8" hex, 10 mm.
- Drive mount, square [metric]: 10.0 mm.
- Drive connector square [inch]: 3/8".
- Standards: DIN 3124, ISO 2725-1; DIN 3120 – C 10; ISO 1174.
- Material: Chrome-vanadium steel 31CrV3.
- Surface: Polished, chrome-plated.
- Total length: 28.0 mm.
- Overall width: 18 mm.
- Overall height: 18 mm.
- Weight: 0.03 kg.
- Operating depth: 9.0 mm.
- Working length: 28.0 mm.
- Insert-Ø1: 14.7 mm; Insert-Ø2: 17.5 mm.
- Contents: 1 pc.
- Special features: Ball retention groove; non-slip cross knurling.
