Product Overview

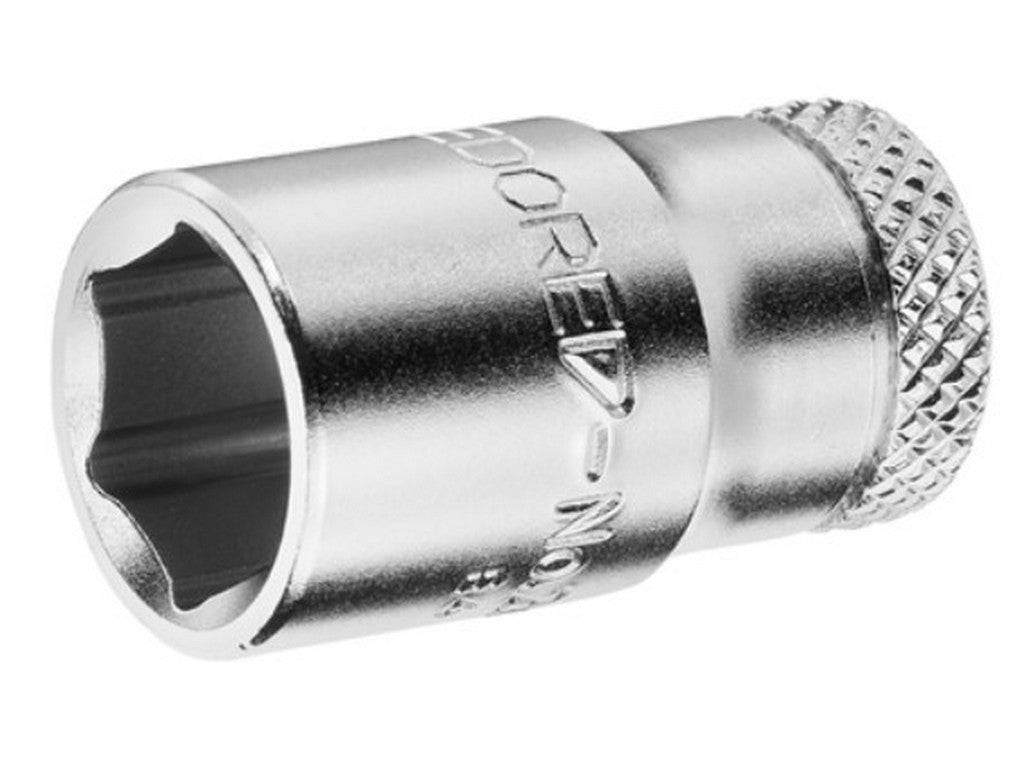

This 1/4" hex socket from GEDORE, Socket 1/4" hex 10 mm (Code no. 6166210), is a hexagonal socket with a 10 mm width across flats and a 1/4" (6.3 mm) square drive. Socket 1/4" hex 10 mm (Code no. 6166210) is described by the manufacturer as hand-operated with knurling for better grip, and the square drive includes a ball retention groove.Material and Surface
The material is specified as GEDORE vanadium steel 31CrV3 / chrome-vanadium steel with a polished and chrome-plated (matt chrome-plated) surface. The product's surface and material are clearly stated in the manufacturer's technical information.Functional Features
- 1/4" (6.3 mm) square drive with ball retention groove.
- Hand-operated socket with knurling for improved grip.
- Polished and chrome-plated surface for corrosion protection and a smooth finish.
Documentation
The product's technical information and dimensions have been verified on the manufacturer's product page. See the manufacturer's product page for complete reference.Specifications
- Product name: Socket 1/4" hex 10 mm (Code no. 6166210).
- Manufacturer: GEDORE.
- Material: GEDORE vanadium steel 31CrV3 (chrome-vanadium steel).
- Surface: Polished, chrome-plated (matt chrome-plated).
- Drive mount, square: 6.3 mm (1/4").
- Standards: DIN 3124; ISO 2725-1; square drive according to DIN 3120 - C 6.3 and ISO 1174.
- Width across flats: 10 mm.
- Overall length: 25 mm.
- Overall width: 14 mm.
- Overall height: 14 mm.
- Working depth / operating depth: 10.0 mm.
- Working / working length: 25.0 mm.
- Insert-Ø 1 / Insert-Ø 2: 14.7 mm (specified by manufacturer).
- Weight: approx. 0.02 kg.
- Scope of delivery: 1 piece.
- Feature: Knurled (hand-operated) and ball retention groove.
