Fluke ii500 — Acoustic/Sonic Imager for Leak Detection

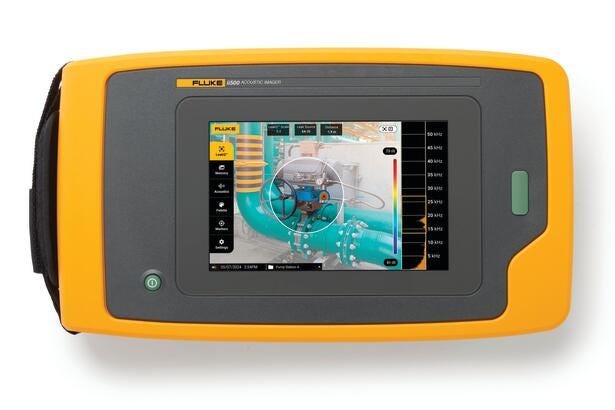

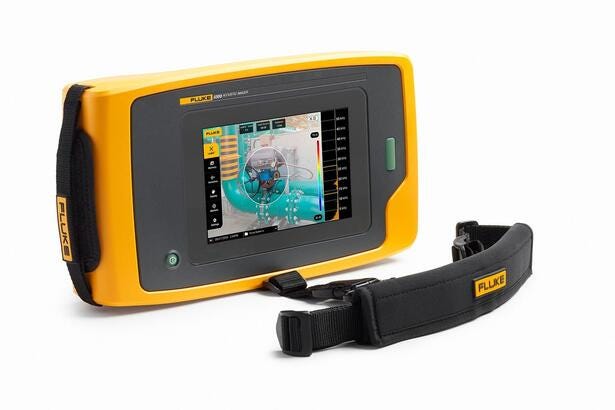

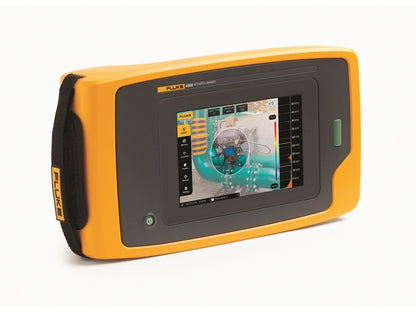

The Fluke ii500 (Model FLK‑II500, Part# 5609242) is an acoustic/sonic industrial imager designed to visualize and locate compressed gas and vacuum leaks. A built-in SoundMap™ overlays an acoustic map onto the image, making sounds outside human hearing visible on the display.
Features

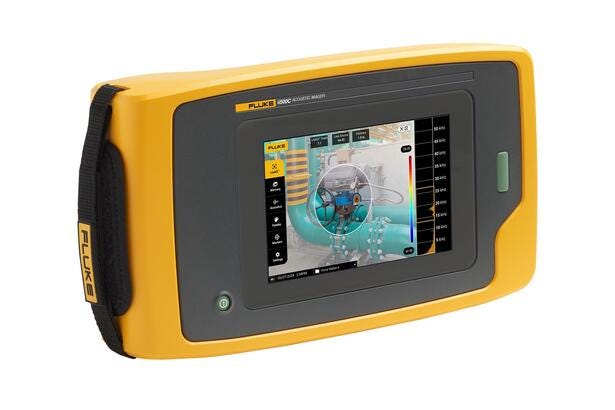

- 7-inch 1280×800 capacitive touchscreen with blended SoundMap™ overlay.
- Acoustic sensor band: 2 kHz to 52 kHz.
- Detection range: 0.5 to >50 meters (depends on ambient conditions).
- Built-in visible camera resolution: 0.3 MP; fixed focus.
- On-device LeakQ™ with leak size scale 1–10.
Typical applications

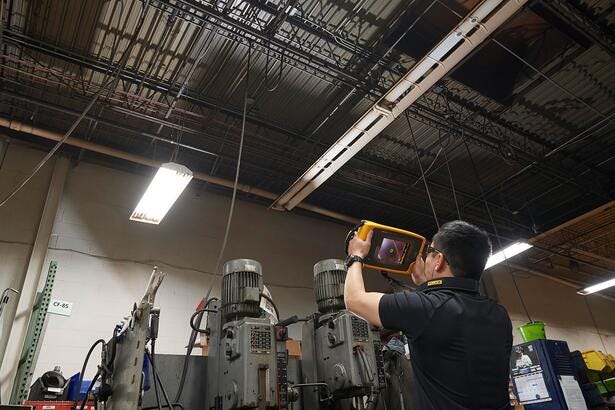

The Fluke ii500 is used for visualizing and locating leaks in compressed systems. The devices can be used for scanning hoses, fittings, and connections to identify unknown or hidden leaks in compressed air, gas, steam, and vacuum systems.
Documentation
Technical data and feature details are documented by the manufacturer. See manufacturer's datasheet
Specifications
- Model: Fluke ii500 (FLK‑II500, Part# 5609242)
- Primary function: Visualization and localization of compressed gas and vacuum leaks
- Display: 7" 1280 × 800 LCD, capacitive touchscreen
- Acoustic frequency band: 2 kHz – 52 kHz
- Detection range: 0.5 to >50 m
- Visible camera: 0.3 MP, fixed focus, FOV 63° ± 5°
- Nominal frame rate: 25 FPS
- Storage: 20 GB (specified as >5,000 images / >999 videos)
- Battery: Rechargeable, replaceable Li‑ion; operating time approx. 6 hours
- Battery charging: External (bay charger); charging time approx. 3 hours
- Video format: Blended SoundMap™/visual .MP4, up to 5 minutes
- Image format: Blended .JPG or .PNG
- Data output: USB‑C
- Operating temperature: -10 to 45 °C
- IP rating: IP40
- Weight (incl. battery): 2.1 kg
- Dimensions (H×W×L): 186 mm × 322 mm × 68 mm
- Warranty: 2 years
- Leak quantification feature: LeakQ™ leak size scale 1–10
