Fluke FEV500 Fast DC EV Charging Station Analyzer
The FEV500 is a portable analyzer for testing, validating, and documenting fast DC electric vehicle charging stations. It is used to verify that a charging station communicates correctly and performs properly under load, without the need for a vehicle to be present at the station.
This is particularly relevant for commissioning, servicing, and troubleshooting CCS-based DC chargers. The guided autotest sequences ensure a more consistent workflow, and results are displayed as clear PASS/FAIL, making it easier to determine if the station meets expectations.
The instrument combines multiple test tasks into one unit. It can be used to check CCS communication, PLC communication, SLAC, insulation, low resistance measurement, IMD, and continuity, among other things. In practice, this means a more complete inspection of the charging station can be performed without needing to set up extensive measurement equipment on site.

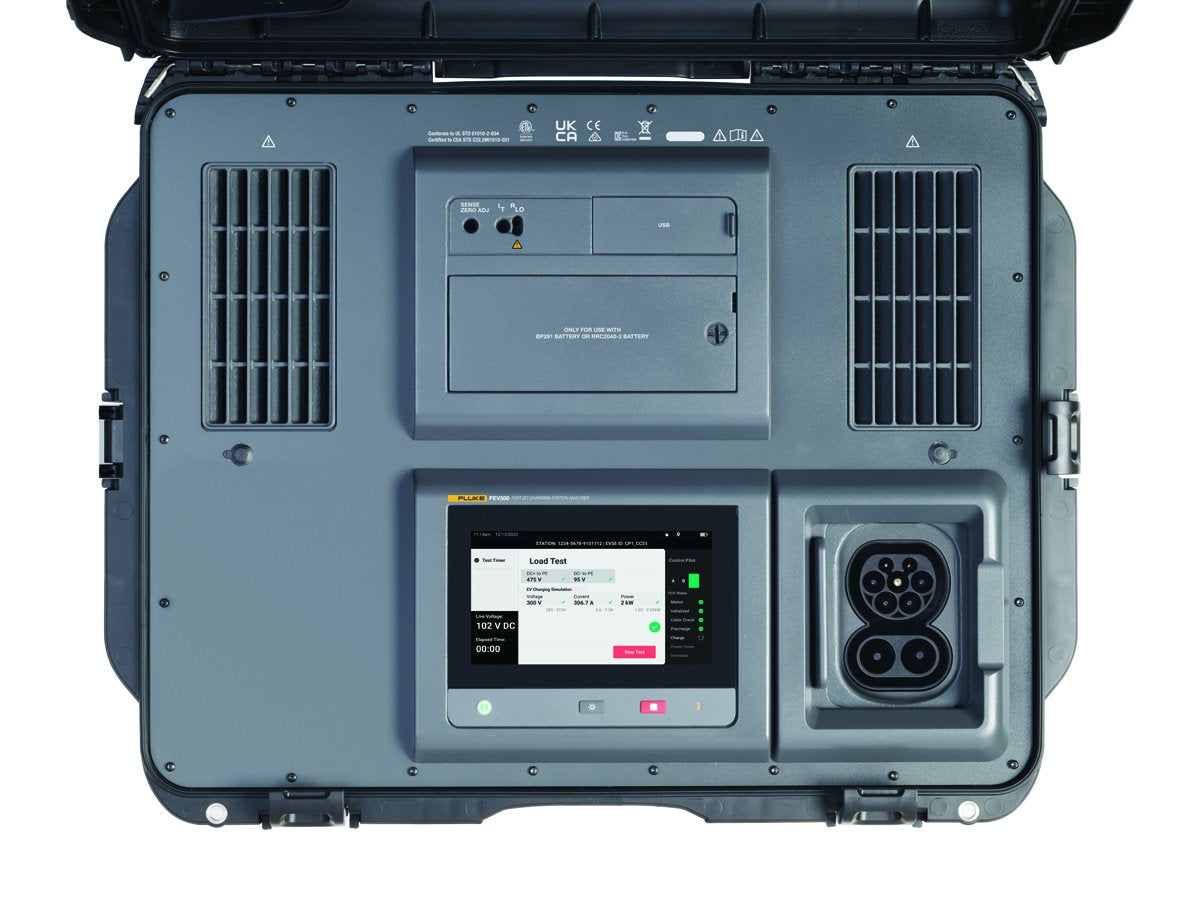

The FEV500 is designed for field use. It features a touchscreen, battery operation, and a transport-friendly case with wheels, making it more practical to bring to the facility than a stationary test setup. Additionally, measurement results can be transferred to Fluke TruTest software, streamlining documentation and reporting.
Model FLK-FEV500/CCS2 is the variant with CCS2 connection.
You can read more here:
See datasheet from the manufacturer
Specifications
- Manufacturer: FLUKE
- MPN: 6008411
- Model: FLK-FEV500/CCS2
- Supports CCS2
- 7" capacitive touch screen
- Removable lithium-ion battery: 10.8 V, 6.8 Ah
- Dimensions: 650 × 508 × 300 mm
- Weight: 26 kg
- Rugged wheeled hardcase
- Automated data collection via Fluke TruTest software
- CCS low-level communication test
- SLAC characterization test
- PLC communication test
- Insulation resistance
- Low resistance measurement
- IMD test
- RLO continuity
