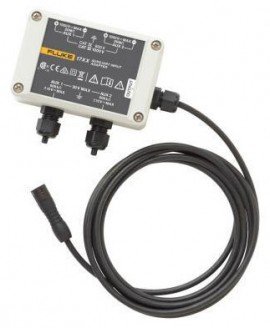

Fluke 17XX AUX Auxiliary Input Adapter
The Fluke 17XX AUX is an auxiliary input adapter for Fluke's 173X, 174X, and 177X energy loggers and power analyzers. It is used when additional analog signals need to be connected to the logger, allowing multiple measurement points to be monitored simultaneously. The adapter provides two analog input channels and can therefore accommodate up to two sensors at a time.
In practice, this means it can be used for measurements such as temperature, pressure, and level, where the sensor provides an analog signal. It can also handle direct DC voltage, a 4-20 mA current signal with an external shunt, or voltage divider inputs for higher DC voltages. This makes it relevant when you want to extend an existing logger with more external signals without changing the measuring instrument itself.
The adapter connects to the logger via a 4-pin connector. Connection to sensors is made with spring terminals and 4 mm safety sockets, depending on the type of input used. The output is supplied with a 1.9 m cable harness, providing some flexibility to conveniently place the adapter in a panel or system.
This is an accessory chosen when the main instrument requires more analog inputs than those already present in the logger. If both process values and voltages need to be measured, this type of expansion makes the setup more flexible.
You can read more here:
Specifications
- For Fluke 173X, 174X, and 177X energy loggers and power analyzers
- Two analog input channels
- Can connect up to two sensors
- Direct DC input 0-10 V
- 4-20 mA current loop with external shunt
- Voltage divider inputs for DC voltages up to 1000 V
- Connection to logger via 4-pin connector
- Spring terminals and 4 mm safety sockets
- Output cable length: 1.9 m
- Dimensions: 119 mm x 86 mm x 38 mm
- Weight: 280 g
- Calibration cycle: 2 years
- Warranty: 1 year
